(88.084.13[07]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING

Запчасти Case 580SN (88.084.13[07]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES

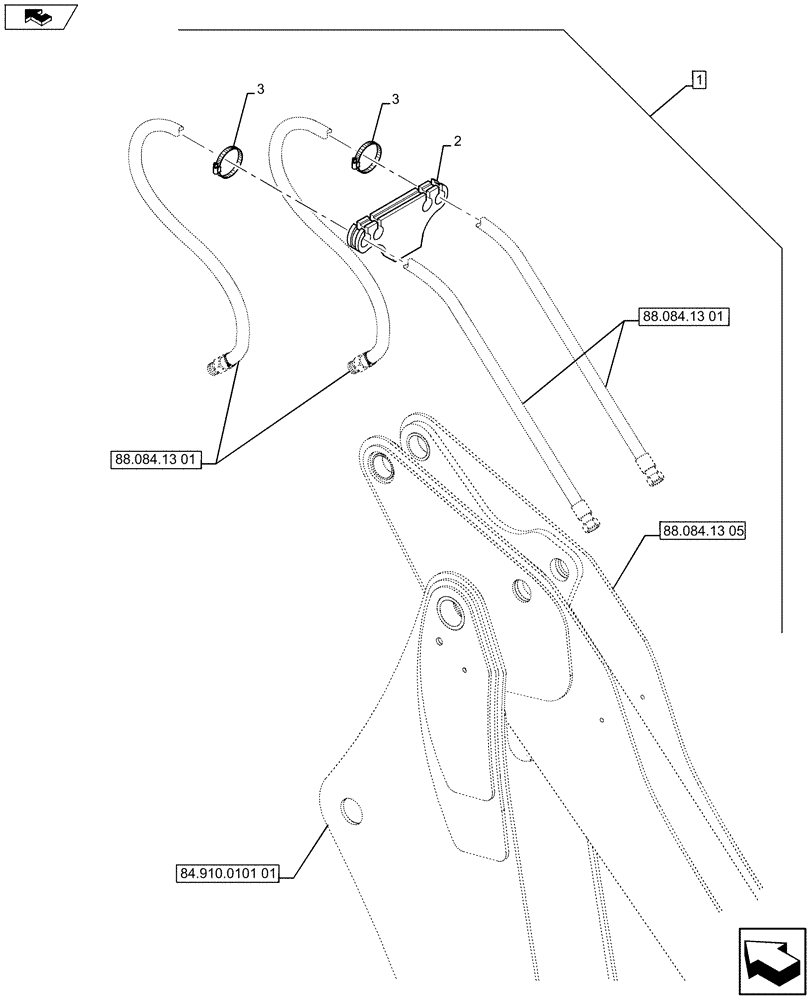

Схема запчастей Case 580SN - (88.084.13[07]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES
88.084.13 05
2
84.910.0101 01
1
home
88.084.13 01
3
3
88.084.13 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84568814

CONSTRUCTION DIA

Dipper Standard to Ext Hoe with Foot Swing, Incl 2 - 3

1шт.

See Ref. 88.084.13 [01] to 88.084.13 [06], 88.084.13 [08] to 88.084.13 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84360628

SUPPORT

1шт.

3

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.
