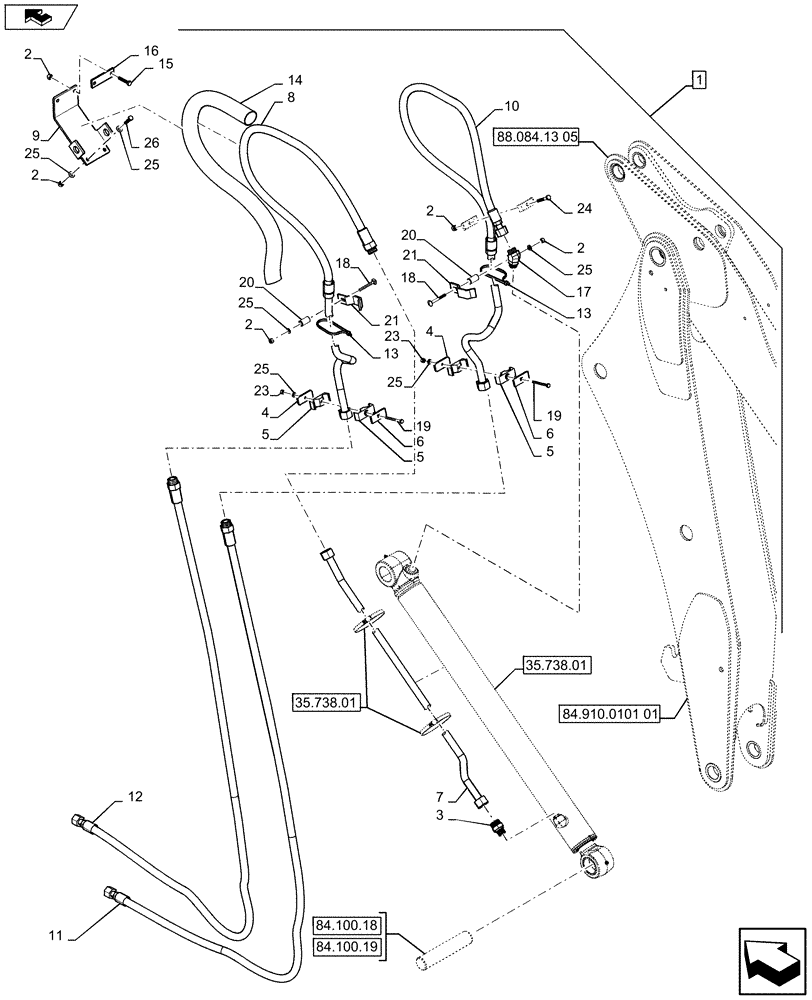

Запчасти Case 580SN (88.084.13[03]) - DIA KIT, DIPPER STANDARD TO EXT HOE WITH FOOT SWING (88) - ACCESSORIES

1

84568814

CONSTRUCTION DIA

Dipper Standard to Ext Hoe with Foot Swing, Incl 2 - 26

1шт.

See Ref. 88.084.13 [01] to 88.084.13 [02], 88.084.13 [04] to 88.084.13 [12]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

412141

NUT,M10 x 1.5, Cl 8

7шт.

3

9840534

HYD CONNECTOR,1-3/16" - 12 ORFS x 7/8" - 14 ORB

1шт.

4

84342644

PLATE

2шт.

5

87000146

CLAMP

2шт.

6

84283495

SECURING STRAP

2шт.

7

84305540

TUBE

1шт.

8

84283822

HYD TUBE

1шт.

9

84359870

BRACKET

1шт.

10

84283823

HYD TUBE

1шт.

11

84257611

HYDRAULIC HOSE,15.88mm ID x 2755mm L, SAE 100R16

1шт.

12

84281616

HOSE ASSY.,15.88mm ID x 2800mm L, SAE 100R16

1шт.

13

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

14

84373395

PROTECTIVE SLEEVE,72.4mm ID x 1105mm L

2шт.

15

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

16

101479A1

SUPPORT

1шт.

17

201-352

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x 7/8" - 14 Male ORB

1шт.

18

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

19

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

20

84259030

SPACER

2шт.

21

84367726

CLAMP,3/4" Clamping tube

2шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

23

412250

NUT,M8 x 1.25, Cl 8

2шт.

24

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

26

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.
