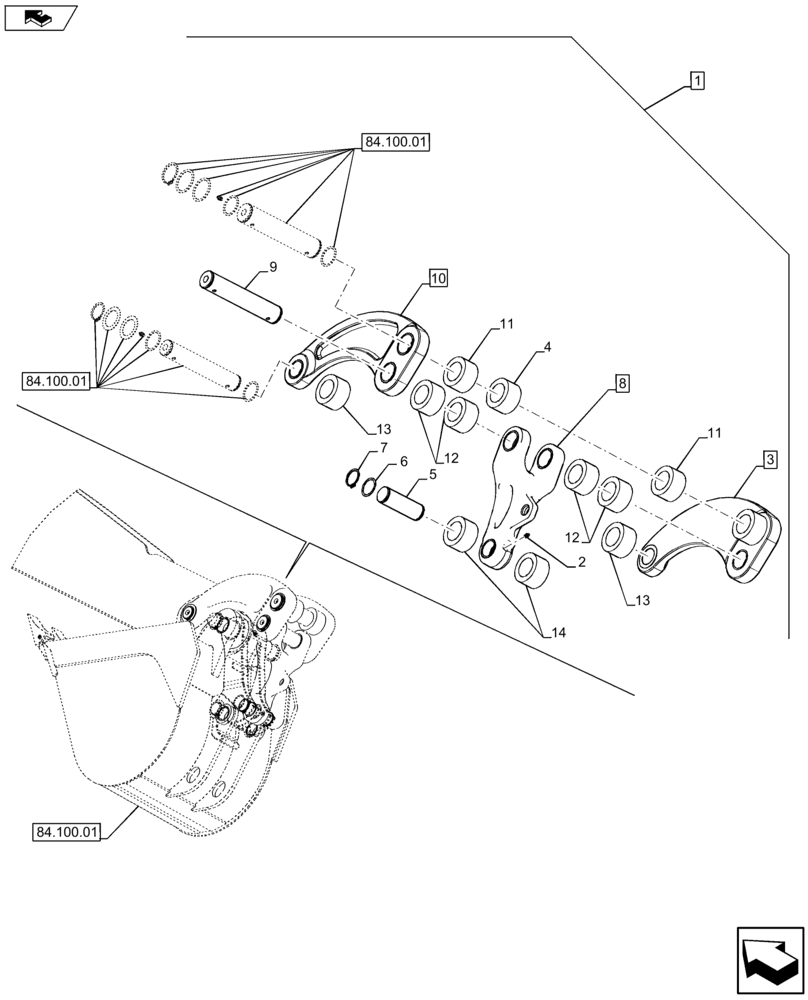

Запчасти Case 580SN (88.084.01[03A]) - DIA KIT, MECHANICAL COUPLER UPGRADE FOR STANDARD DIPPER - D7361 (88) - ACCESSORIES

1

47650948

CONSTRUCTION DIA

Mechanical Coupler Upgrade for Standard Dipper, Incl 2 - 14

1шт.

See Ref. 88.084.01 [01A] to 88.084.01 [02A]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

3

84229983

LINK ASSY.

RH; Assy, Incl 11 - 13

1шт.

4

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.

5

84223652

PIN,50mm OD x 151mm L

Dump Link to Coupler

1шт.

6

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

7

84233536

RING,55mm ID, Ext

2шт.

8

84530015

LINK BLOCK

Assy, Incl 12, 14

1шт.

9

84231908

PIN,55mm OD x 291.76mm L

Backhoe Link

2шт.

10

84229982

LINK ASSY.

LH; Assy, Incl 11 - 13

1шт.

11

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

60X70X38

1шт.

12

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

55X65X38

1шт.

13

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

50X60X36

1шт.

14

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.
