(88.084.01[02A]) - DIA KIT, MECHANICAL COUPLER UPGRADE FOR STANDARD DIPPER - D7361

Запчасти Case 580SN (88.084.01[02A]) - DIA KIT, MECHANICAL COUPLER UPGRADE FOR STANDARD DIPPER - D7361 (88) - ACCESSORIES

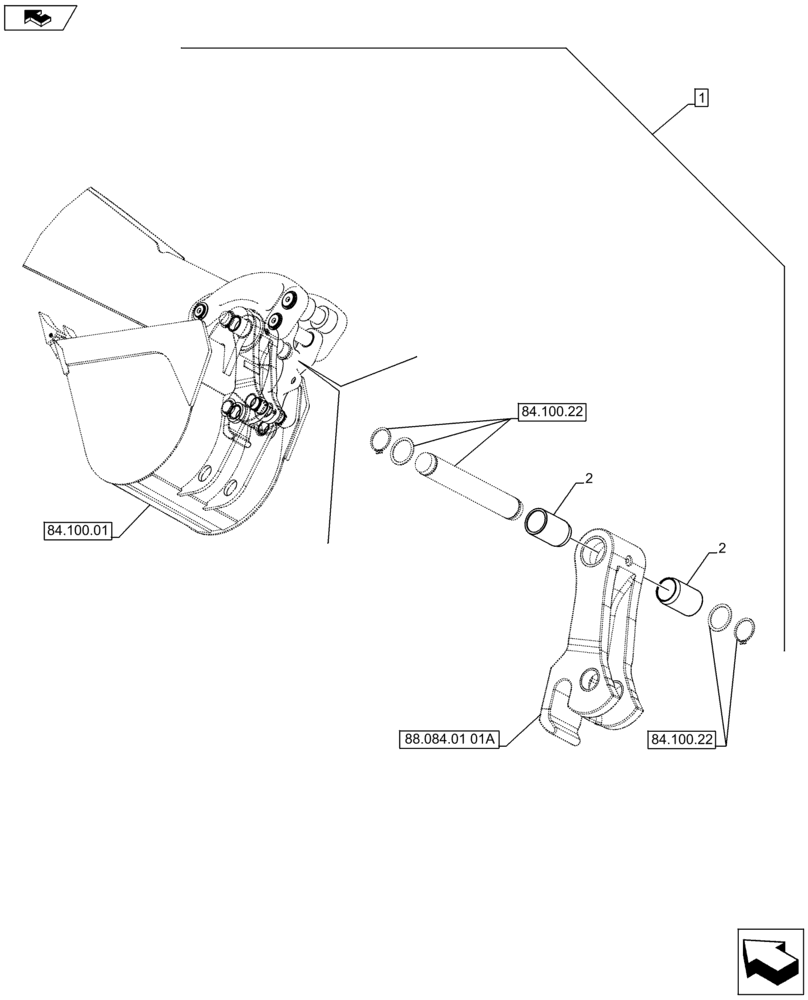

Схема запчастей Case 580SN - (88.084.01[02A]) - DIA KIT, MECHANICAL COUPLER UPGRADE FOR STANDARD DIPPER - D7361 (88) - ACCESSORIES
84.100.22
2
1
2
home
88.084.01 01a
84.100.22
84.100.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47650948

CONSTRUCTION DIA

Mechanical Coupler Upgrade for Standard Dipper, Incl 2

1шт.

See Ref. 88.084.01 [01A], 88.084.01 [03A]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.
