(88.084.01[02]) - DIA KIT, CONVERSION FROM STANDARD LINKS TO QUICK COUPLER - C7361

Запчасти Case 580SN (88.084.01[02]) - DIA KIT, CONVERSION FROM STANDARD LINKS TO QUICK COUPLER - C7361 (88) - ACCESSORIES

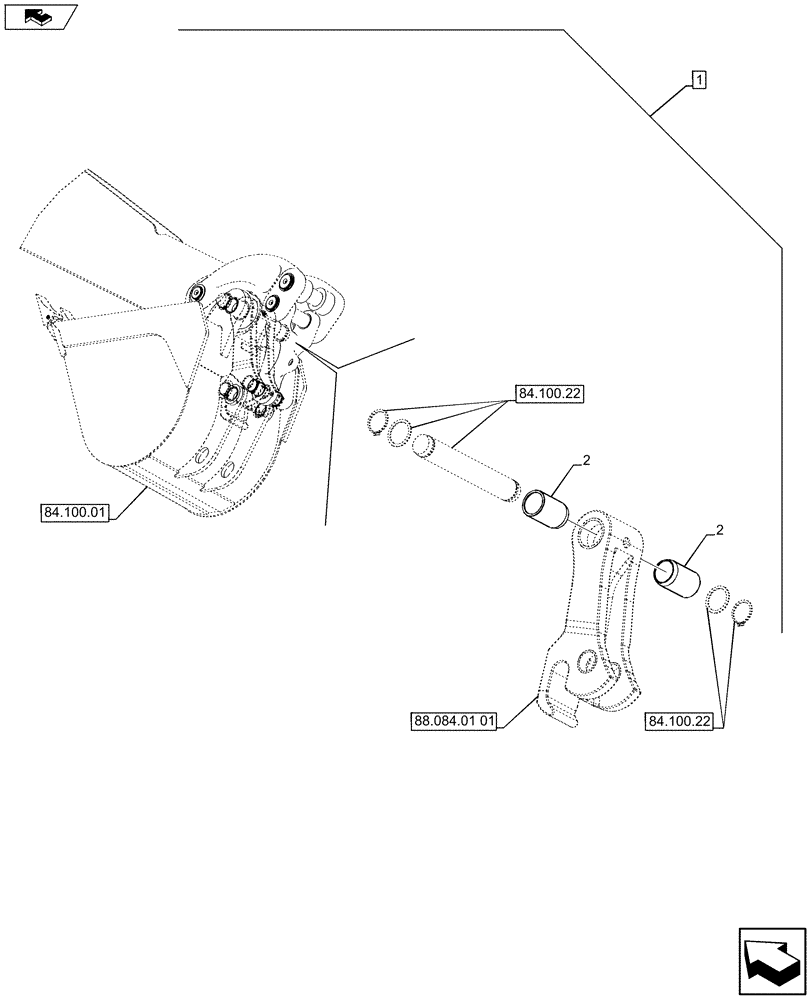

Схема запчастей Case 580SN - (88.084.01[02]) - DIA KIT, CONVERSION FROM STANDARD LINKS TO QUICK COUPLER - C7361 (88) - ACCESSORIES
84.100.01
1
2
home
84.100.22
84.100.22
88.084.01 01
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84541812

SERVICE KIT

Conversion from Standard Links to Quick Coupling, Incl 2, Serial Range: -`0

1шт.

See Ref. 88.084.01 [01], 88.084.01 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

Выбрано товаров: 4
