Запчасти Case 580SN (88.084.01[01]) - DIA KIT, CONVERSION FROM STANDARD LINKS TO QUICK COUPLER - C7361 (88) - ACCESSORIES

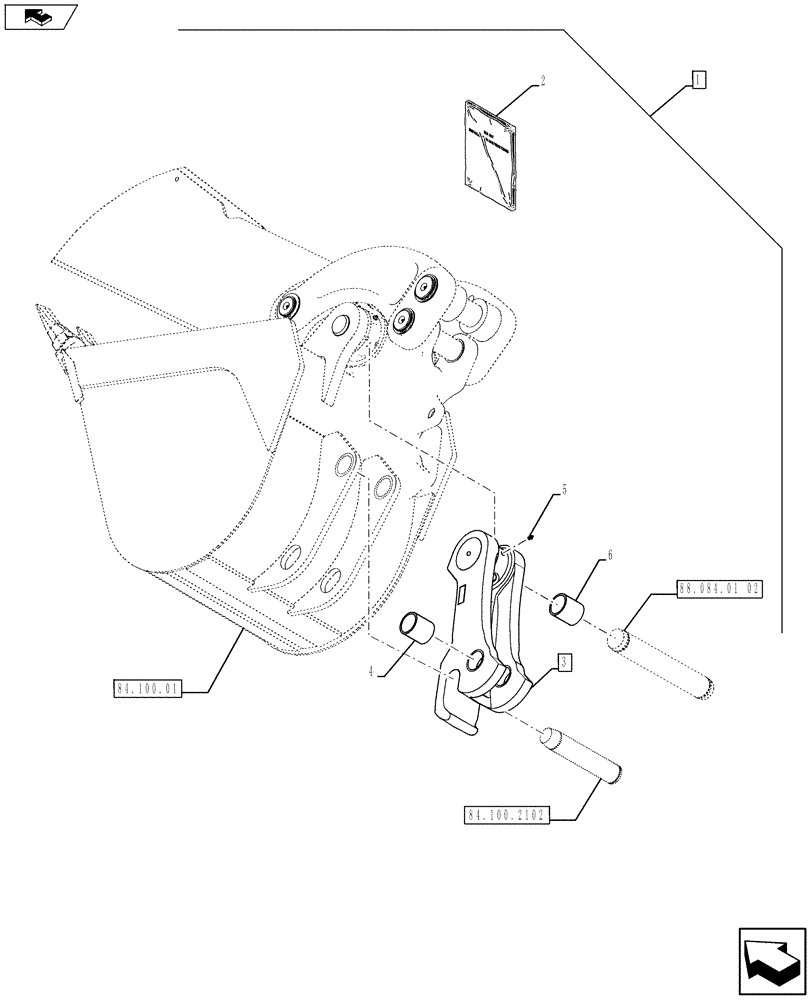

Схема запчастей Case 580SN - (88.084.01[01]) - DIA KIT, CONVERSION FROM STANDARD LINKS TO QUICK COUPLER - C7361 (88) - ACCESSORIES
2
5
88.084.01 02
home
3
84.100.01
6
4
1
84.100.2102

Артикул

Название

Примечание

Количество

1

84541812

SERVICE KIT

Conversion from Standard Links to Quick Coupling, Incl 2 - 6, Serial Range: -`0

1шт.

See Ref. 88.084.01 [02] to 88.084.01 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84541813

INSTRUCTION

1шт.

3

84229979

LINK ASSY.

Assy, Incl 4, 6

1шт.

4

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

5

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

6

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

Выбрано товаров: 8
