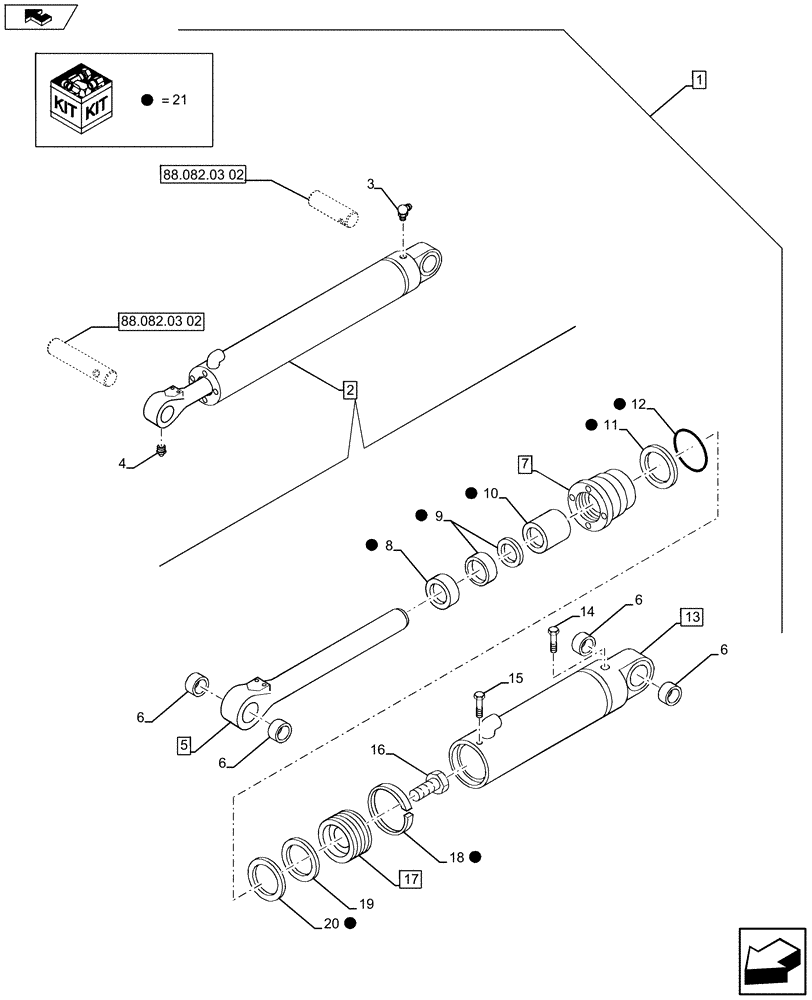

Запчасти Case 580SN (88.082.03[03]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN) (88) - ACCESSORIES

1

84571019

BUCKET

82 in 4-in-1, Incl 2 - 21, Serial Range: -`0

1шт.

See Ref. 88.082.03 [01] to 88.082.03 [02], 88.082.03 [04] to 88.082.03 [05],Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

LH; Assy, Incl 3 - 21

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

5

1346195C1

PISTON ROD

Assy, Incl 6

1шт.

6

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

4шт.

7

1542987C1

GLAND

Assy, Incl 8 - 12

1шт.

8

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

1шт.

9

1542875C1

SEAL KIT,44.4mm Rod

1шт.

10

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

1шт.

11

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

12

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

13

87454908

BARREL

Assy, Incl 6

1шт.

14

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

15

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

16

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

17

1340797C1

PISTON ASSY.

Assy, Incl 18 - 20

1шт.

18

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

19

G100443

SEAL,67.9mm ID x 77.1mm OD x 6.8mm Thk

1шт.

20

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

21

86982377

SEAL KIT

1шт.
