Запчасти Case 580SN (88.082.03[02]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN) (88) - ACCESSORIES

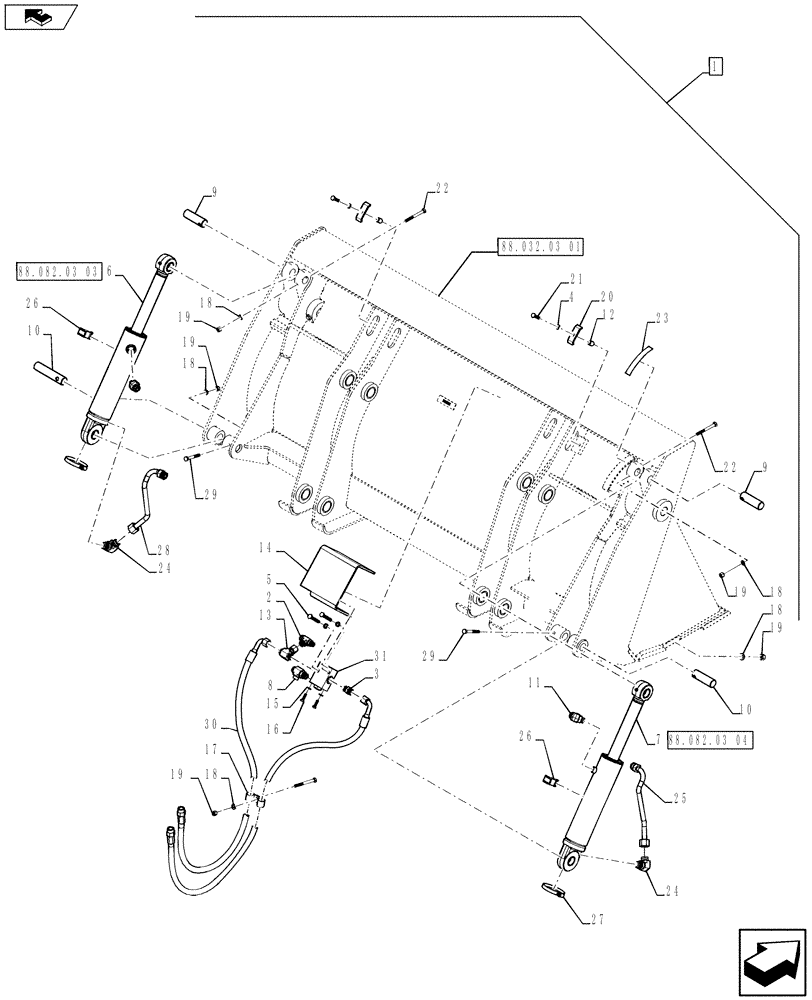

Схема запчастей Case 580SN - (88.082.03[02]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN) (88) - ACCESSORIES
31
10
30
18
19
20
16
7
home
88.082.03 03
10
19
12
14
19
88.082.03 04
5
6
27
8
4
1
3
23
26
18
29
25
9
11
22
29
28
18
17
26
19
18
24
15
9
2
88.032.03 01
19
21
24
22
13
18

Артикул

Название

Примечание

Количество

1

84571019

BUCKET

82 in 4-in-1, Incl 2 - 31

1шт.

See Ref. 88.082.03 [01], 88.082.03 [03] to 88.082.03 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

201-411

TEE,13/16"-16 ORFS x 13/16"-16 Sw Br

1шт.

3

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

1шт.

4

892-11010

LOCK WASHER,M10

4шт.

5

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

6

87455458

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

LH; Assy

1шт.

7

87455459

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.2mm Bore, 230.6mm Stroke

RH; Assy

1шт.

8

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

, Serial Range: -C7281

1шт.

8

84533155

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

, Start Serial: D7281

2шт.

9

D51392

PIN,31.72mm OD x 101.6mm L

2шт.

10

D51393

PIN,31.72mm OD x 152.4mm L

2шт.

11

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

12

R46493

SPACER,0.406" ID x 0.625" OD x 0.850" Thk

2шт.

13

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

, Serial Range: -C7281

1шт.

14

388848A1

GUARD

1шт.

15

892-11008

LOCK WASHER,8mm ID

2шт.

16

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

515-25254

CLAMP,1", Insul, 1/2" Bolt

2шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

5шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

5шт.

20

D143846

CLAMP

2шт.

21

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

22

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

23

321-1708

DECAL

0-2-4, Clam Bucket Opening Indicator

1шт.

24

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

2шт.

25

84219829

HYD TUBE

1шт.

26

D38648

BLOCK

2шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

28

84219830

HYD TUBE

1шт.

29

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

30

84272032

HOSE ASSY.,12.5mm ID x 1290mm L

2шт.

31

325465A2

VALVE, CHECK

, Serial Range: -C7281

1шт.

31

47565552

PILOT VALVE

, Start Serial: D7281

1шт.

Выбрано товаров: 35
