(88.082.03[01]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN)

Запчасти Case 580SN (88.082.03[01]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN) (88) - ACCESSORIES

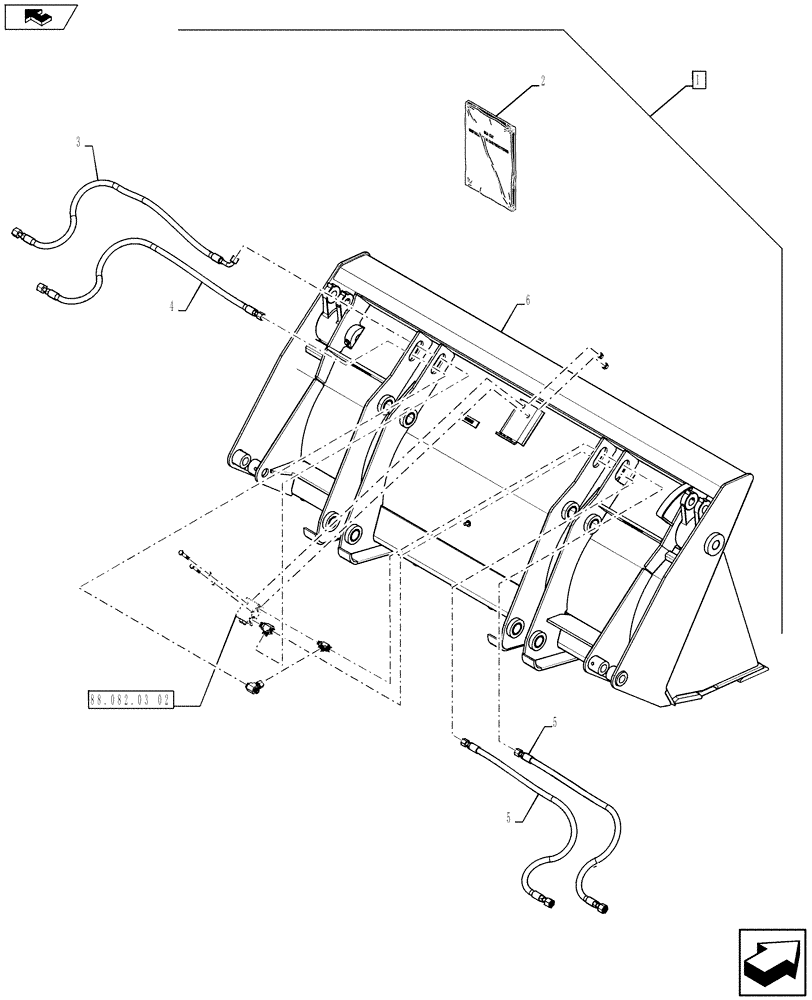

Схема запчастей Case 580SN - (88.082.03[01]) - DIA KIT, LOADER BUCKET 4-IN-1 (82 IN) (88) - ACCESSORIES
88.082.03 02
2
4
1
3
home
6
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84571019

BUCKET

1шт.

See Ref. 88.082.03 [02] to 88.082.03 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84479217

INSTRUCTION

1шт.

3

84219844

HOSE ASSY.,12.5mm ID x 1250mm L

1шт.

4

84219846

HOSE ASSY.,12.5mm ID x 1283mm L

1шт.

5

84219839

HOSE ASSY.,12.5mm ID x 1152mm L

2шт.

6

86981877

4 IN 1 BUCKET

82" 4-in-1

1шт.
