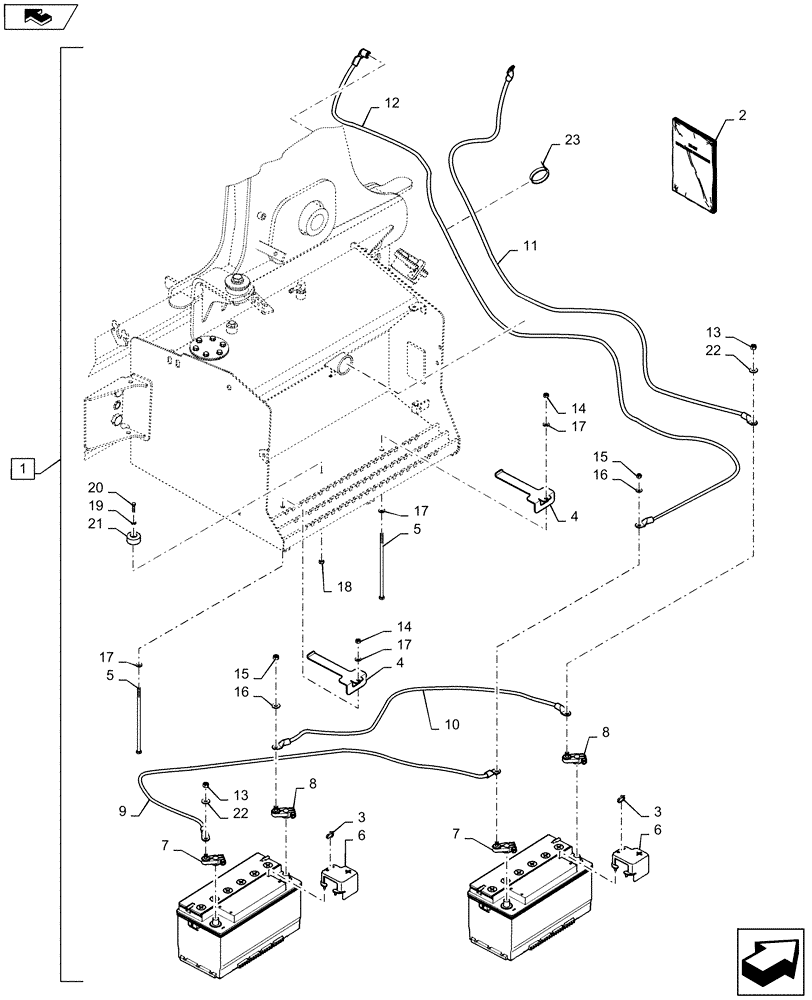

Запчасти Case 580SN (88.055.09) - DIA KIT, DUAL BATTERY (88) - ACCESSORIES

1

87722930

CONSTRUCTION DIA

Dual Battery, Incl 2 - 23

1шт.

2

84376310

INSTRUCTION

Dual Battery

1шт.

3

87486703

CABLE TIE,312mm L

Securing

2шт.

4

87653377

BRACKET

Battery Tie Down

2шт.

5

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

2шт.

6

87664021

COVER

Battery Positive Protective

2шт.

7

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negative, Stud

2шт.

8

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive, Stud

2шт.

9

87610682

NEG BATTERY CABLE,485mm L

Jumper, Tier III

1шт.

10

87610681

POS BATTERY CABLE

Jumper, Tier III

1шт.

11

87610680

NEG BATTERY CABLE,1200mm L

Tier III

1шт.

12

87610679

POS BATTERY CABLE

1шт.

13

425-105

NUT,5/16"-18, G5

2шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

832-10406

NUT,M6 x 1, Cl 8

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

20

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

21

87671746

BUMPER,Neoprene

Rubber

1шт.

22

495-11034

WASHER,5/16", SAE

2шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
