Запчасти Case 580SN (88.055.08[01]) - DIA KIT, COLD START AID, MECH (88) - ACCESSORIES

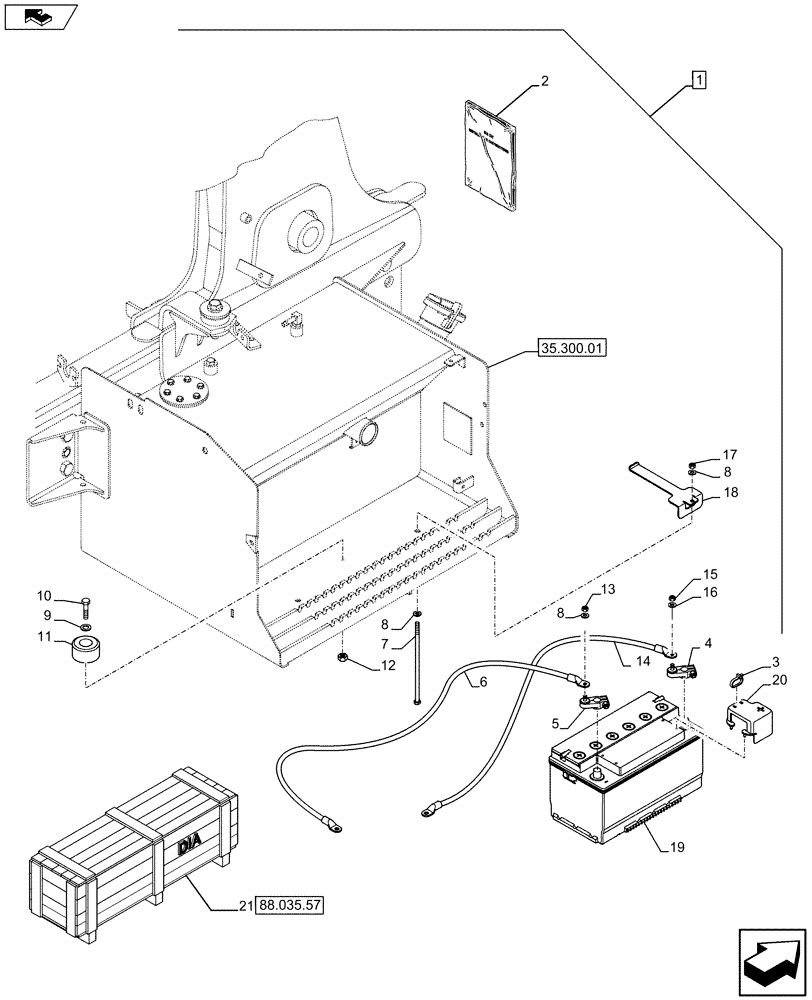

Схема запчастей Case 580SN - (88.055.08[01]) - DIA KIT, COLD START AID, MECH (88) - ACCESSORIES
20
17
11
13
10
16
3
8
8
6
7
4
88.035.57
8
21
2
12
19
5
home
1
35.300.01
18
15
14
9

Артикул

Название

Примечание

Количество

1

47361925

CONSTRUCTION DIA

Cold Start Aid Mech, Incl 2 - 21

1шт.

See DIA KIT Composition from Figure 88.055.08 [01] to Figure 88.055.08 [02]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47361926

INSTRUCTION

1шт.

3

87486703

CABLE TIE,312mm L

1шт.

4

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

1шт.

5

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

1шт.

6

87610682

NEG BATTERY CABLE,485mm L

1шт.

7

87522766

BOLT,Hex, M8 x 220mm, Cl 8.8

1шт.

8

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

9

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

1шт.

10

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

11

87671746

BUMPER,Neoprene

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

425-105

NUT,5/16"-18, G5

1шт.

14

87610681

POS BATTERY CABLE

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

17

412250

NUT,M8 x 1.25, Cl 8

1шт.

18

87653377

BRACKET

1шт.

19

87403835

WET BATTERY,Group 49, 12V, 850CCA

1шт.

20

87664021

COVER

1шт.

21

47365990

DIA KIT, TLB

1шт.

Выбрано товаров: 23
