(88.055.03[02]) - DIA KIT, SITEWATCH™ - D9045

Запчасти Case 580SN (88.055.03[02]) - DIA KIT, SITEWATCH™ - D9045 (88) - ACCESSORIES

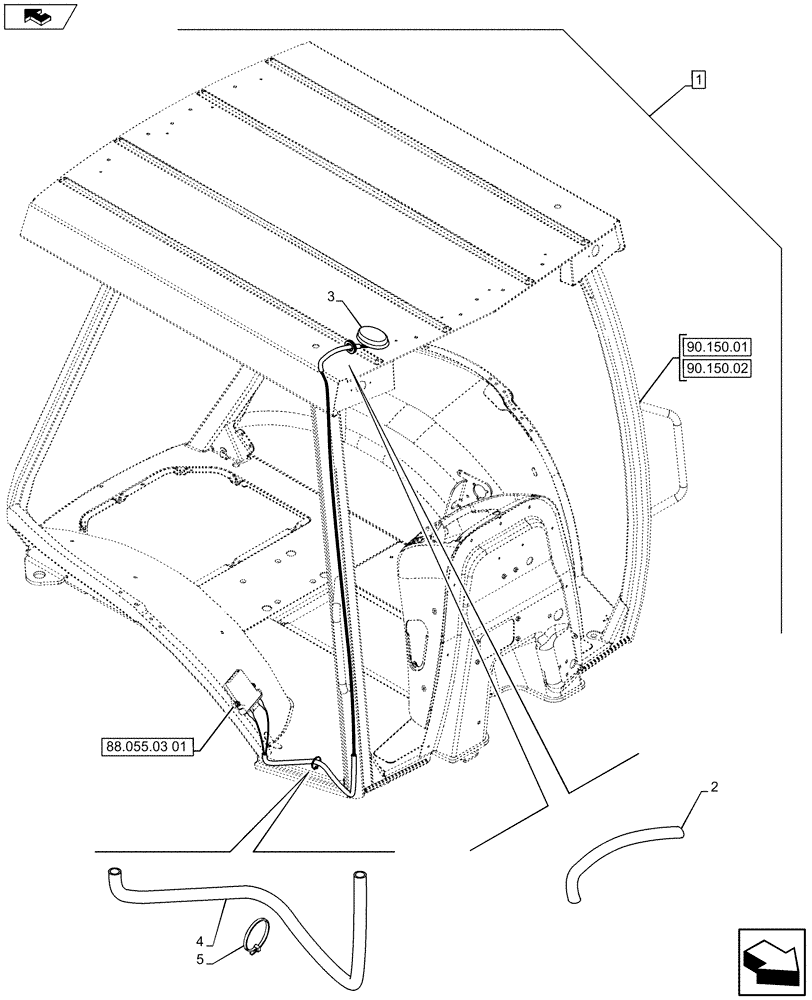

Схема запчастей Case 580SN - (88.055.03[02]) - DIA KIT, SITEWATCH™ - D9045 (88) - ACCESSORIES
2
4
1
88.055.03 01
5
3
90.150.01
90.150.02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47522735

KIT

Sitewatch™, Incl 2 - 5

1шт.

See DIA KIT Composition from Figure 88.055.03 [01] to Figure 88.055.03 [02]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

392353A1

CONDUIT

1шт.

3

47386256

ANTENNA

1шт.

4

47417233

CONDUIT

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

Выбрано товаров: 7
