Запчасти Case 580SN (88.050.01[05]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

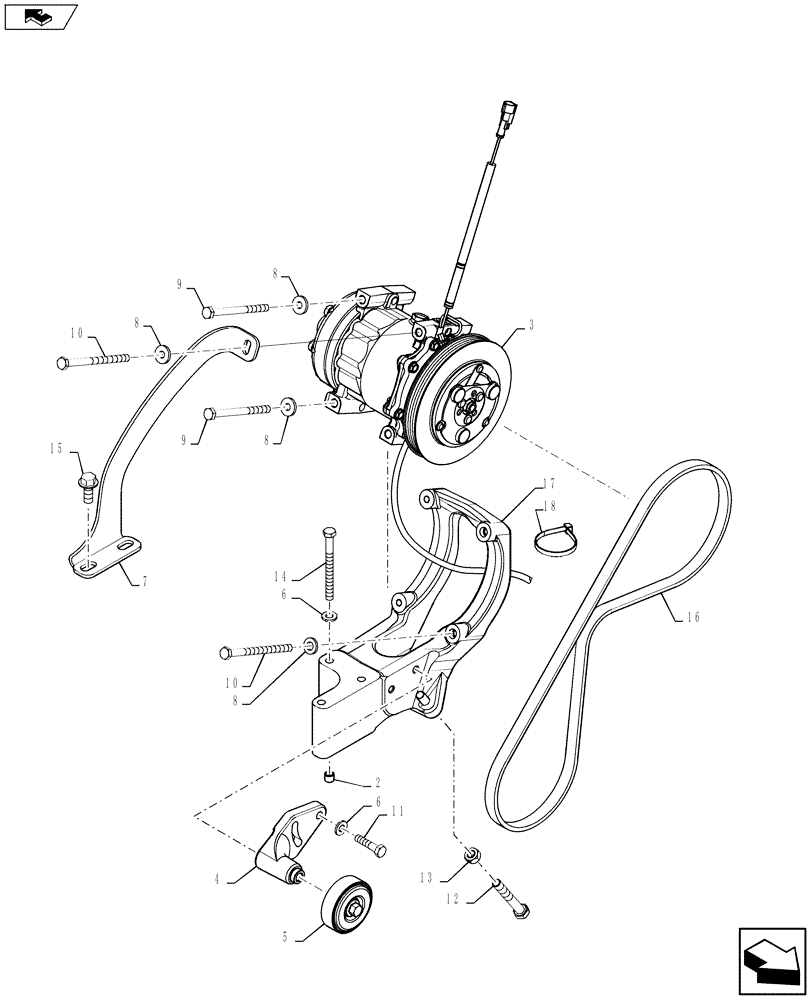

Схема запчастей Case 580SN - (88.050.01[05]) - DIA KIT, A/C HPCR (88) - ACCESSORIES
2
12
13
18
3
15
11
8
14
8
17
10
7
8
6
home
16
10
9
6
8
9
4
5

Артикул

Название

Примечание

Количество

1

84499063

KIT

A/C HPCR, Incl 2 - 18

1шт.

See Ref. 88.050.01 [01] to 88.050.01 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

Dowel Stud

2шт.

3

84356660

AIRCOND. COMPRESSOR

(Sanden)

1шт.

3

47693200

AIRCOND. COMPRESSOR,12V, 45W_W/ Pulley 156mm D

(TCCI), Start Year: 15-MAY-14

1шт.

4

87551299

SUPPORT

Bracket Idler Support

1шт.

5

87548073

IDLER

Pulley

1шт.

6

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

5шт.

7

84546916

BRACKET

A/C Brace

1шт.

8

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

4шт.

9

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

2шт.

10

86516527

BOLT,Hex, M8 x 110mm, Cl 10.9

2шт.

11

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

2шт.

12

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

14

87670762

BOLT,Hex, M8 x 90mm, Cl 10.9

3шт.

15

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

16

84591722

V-BELT,14.25mm W x 1165mm L, 4 Ribs

A/C Compressor

1шт.

17

84548639

BRACKET

A/C Mounting Painted

1шт.

18

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

Выбрано товаров: 21
