Запчасти Case 580SN (88.050.01[02]) - DIA KIT, A/C HPCR (88) - ACCESSORIES

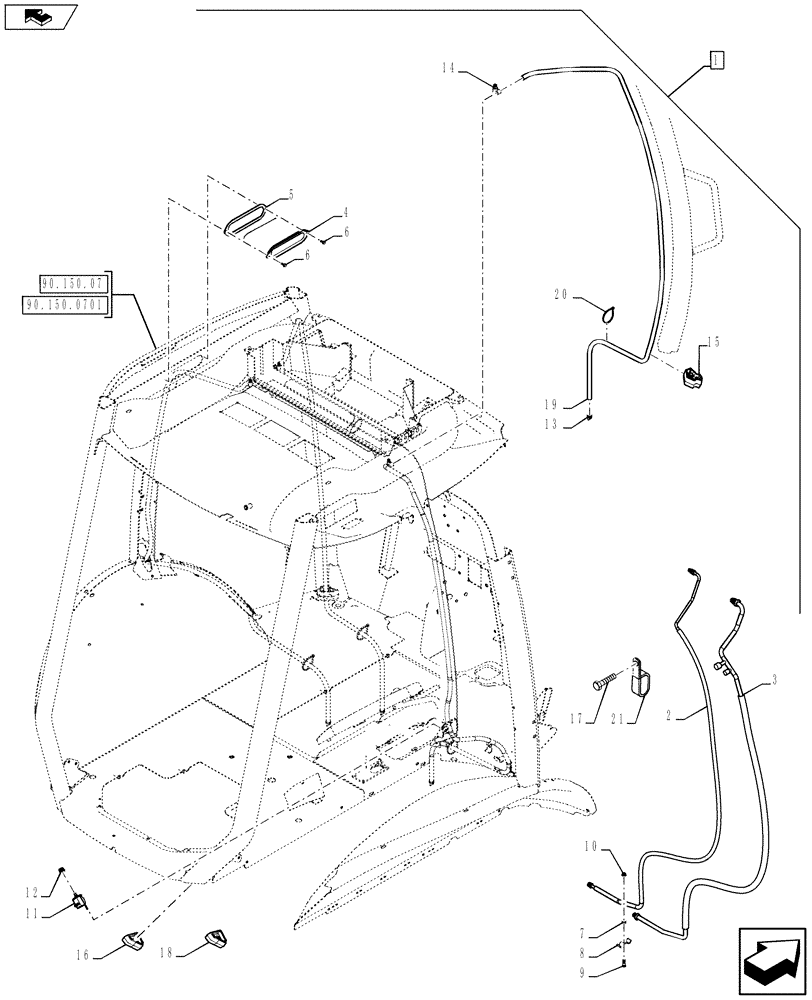

Схема запчастей Case 580SN - (88.050.01[02]) - DIA KIT, A/C HPCR (88) - ACCESSORIES
home
15
20
18
12
13
8
7
16
3
2
19
21
11
17
4
90.150.0701
90.150.07
5
1
10
9
6
14
6

Артикул

Название

Примечание

Количество

1

84499063

KIT

A/C HPCR, Incl 2 - 21, Serial Range: -`0

1шт.

See Ref. 88.050.01 [01], 88.050.01 [03] to 88.050.01 [05]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

360256A1

A/C HOSE,0.375 Inch OD x 0.035 Inch Wall, Thermoplastic Core

Pressure Cab

1шт.

3

360257A1

A/C HOSE,0.625 Inch OD x 0.049 Inch Wall, Thermoplastic Core

Suction Cab

1шт.

4

381111A2

SLEEVE

Fresh Air Intake

1шт.

5

381113A2

INSULATOR,3mm Thk

Fresh Air Sleeve

1шт.

6

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

2шт.

7

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

Steel

1шт.

8

D143427

CLAMP

Tube

1шт.

9

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

11

370381A1

ROTARY SWITCH

Thermostat

1шт.

12

400379A1

KNOB,23mm

Spring Clip 23mm

1шт.

13

365789A1

DRAIN VALVE

Evap Core

4шт.

14

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

15

383794A2

PLUG

A Post

2шт.

16

383795A2

PLUG

C Post

2шт.

17

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

Firewall Lower

1шт.

18

395470A1

PLUG

Firewall Upper

1шт.

19

87615800

TUBE,16.88 mm ID x 549.00 mm

Evap Core Drain

4шт.

20

L11541

CABLE TIE,203.2mm L, Nylon

7 - 8 Inch

23шт.

21

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

Выбрано товаров: 23
