(88.039.04) - DIA KIT, FLIP STABILIZER, 580SN WT AND 590SN

Запчасти Case 580SN (88.039.04) - DIA KIT, FLIP STABILIZER, 580SN WT AND 590SN (88) - ACCESSORIES

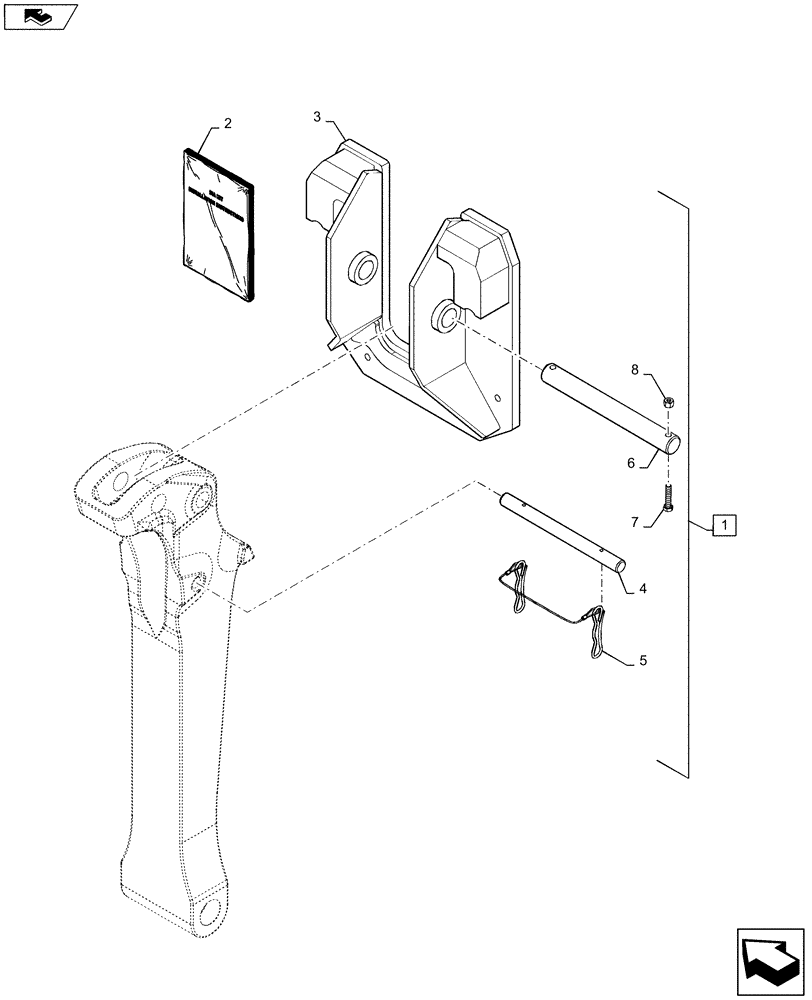

Схема запчастей Case 580SN - (88.039.04) - DIA KIT, FLIP STABILIZER, 580SN WT AND 590SN (88) - ACCESSORIES
8
6
4
5
2
7
home
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84276999

KIT

580sn Weight And 590sn Flip Stabilizer, Incl 2 - 8

1шт.

2

84399663

INSTRUCTION

Sheet, 580sn Weight And 590sn Flip

1шт.

3

84290975

PAD

Assembly, Stabilizer Flip

2шт.

4

84290956

PIVOT PIN,25.4mm OD x 300mm L

Anti-Flip

2шт.

5

446454A1

PIN,4.5mm OD x 305mm L

Cotter With 12 Cable Lanyard

2шт.

6

D149033

PIN,38.1mm OD x 323.5mm L

Flipad Mounting

2шт.

7

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
