(88.035.67[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE

Запчасти Case 580SN (88.035.67[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES

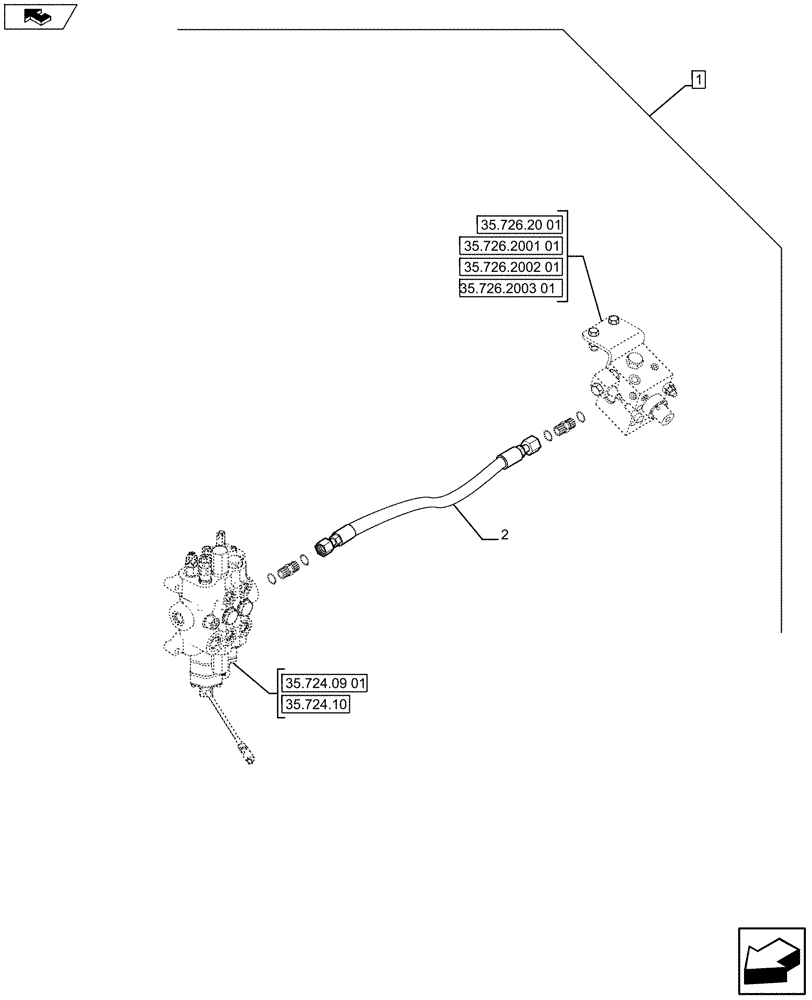

Схема запчастей Case 580SN - (88.035.67[08]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE (88) - ACCESSORIES
35.726.20 01
35.726.2003 01
35.726.2001 01
home
35.726.2002 01
2
35.724.09 01
1
35.724.10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546982

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MECHANICAL CONTROLS, EXTENDABLE HOE, Incl 2

1шт.

See Ref. 88.035.67 [01] to 88.035.67 [07], 88.035.67 [09] to 88.035.67 [14]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84283267

HOSE ASSY.,19mm ID x 480mm L, SAE 100R16 Type S

1шт.
