(88.035.64[10]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE

Запчасти Case 580SN (88.035.64[10]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE (88) - ACCESSORIES

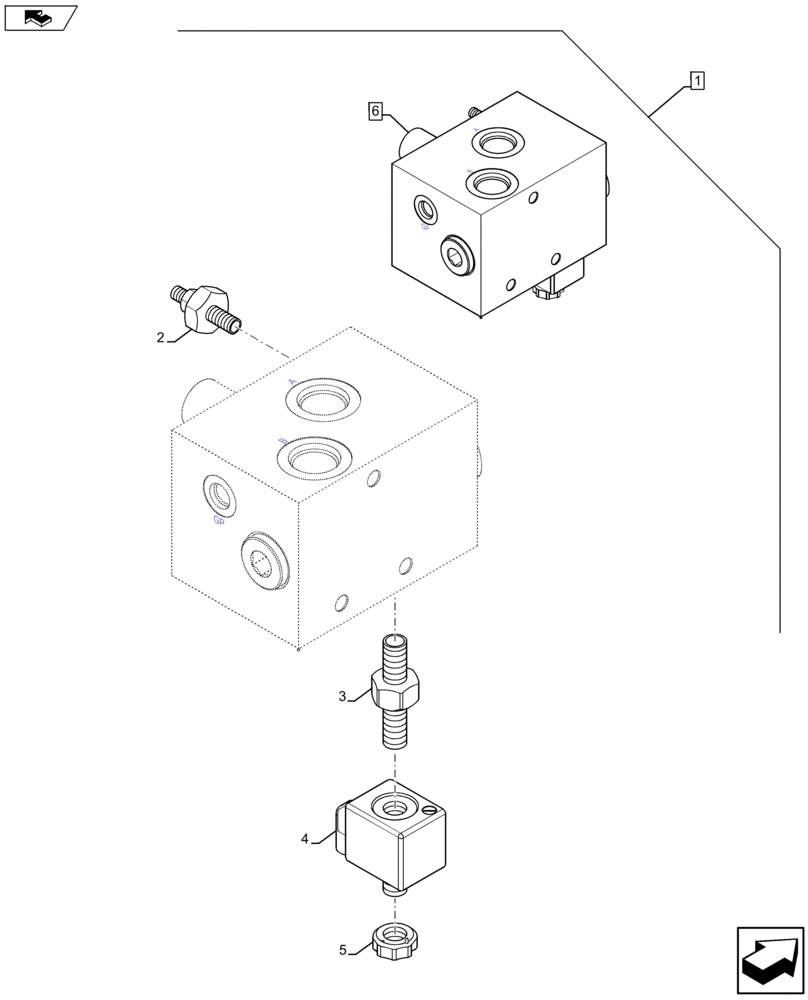

Схема запчастей Case 580SN - (88.035.64[10]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE (88) - ACCESSORIES
3
4
1
6
5
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546989

CONSTRUCTION DIA

Uni Dir. Mechanical Control, Extendable Hoe, Incl 2 - 6

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.64 [01] to 88.035.64 [09]

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247109

VALVE

Assy, Incl 2 - 5

1шт.
