(88.035.64[06]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE

Запчасти Case 580SN (88.035.64[06]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE (88) - ACCESSORIES

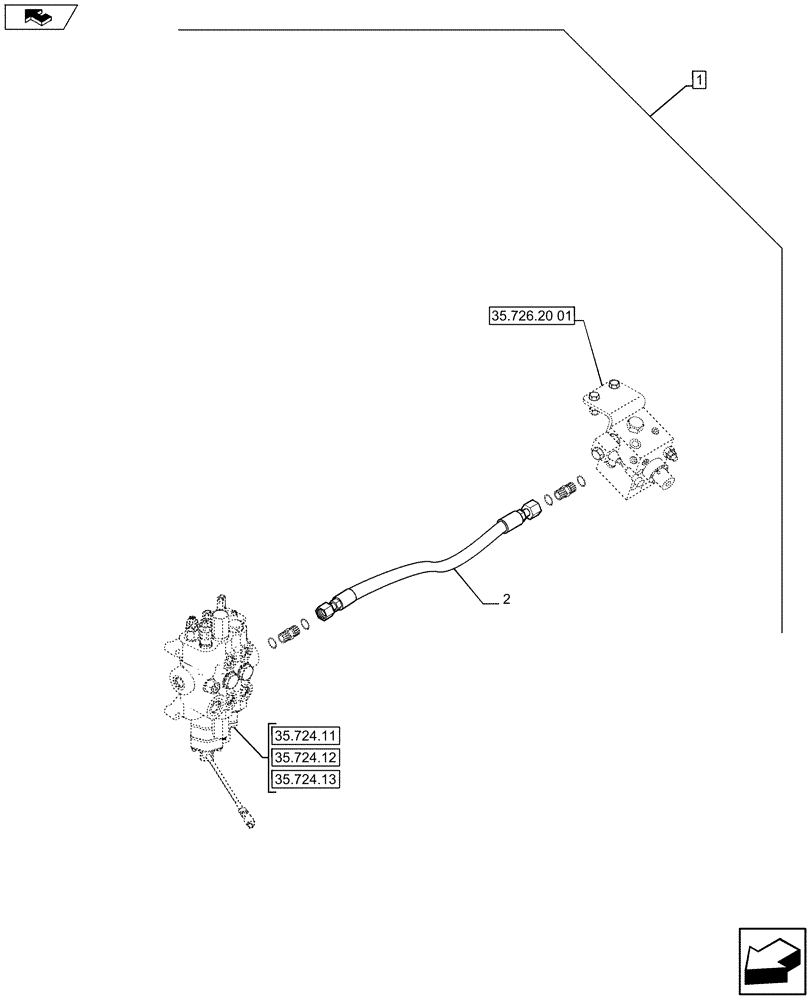

Схема запчастей Case 580SN - (88.035.64[06]) - DIA KIT, UNI DIR. MECHANICAL CONTROL, EXTENDABLE HOE (88) - ACCESSORIES
1
35.724.12
35.724.13
35.724.11
2
home
35.726.20 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546989

CONSTRUCTION DIA

Uni Dir. Mechanical Control, Extendable Hoe, Incl 2

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.64 [01] to 88.035.64 [05], 88.035.64 [07] to 88.035.64 [10]

1шт.

2

84283269

HOSE ASSY.,19mm ID x 461mm L

1шт.
