(88.035.63[08]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER

Запчасти Case 580SN (88.035.63[08]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES

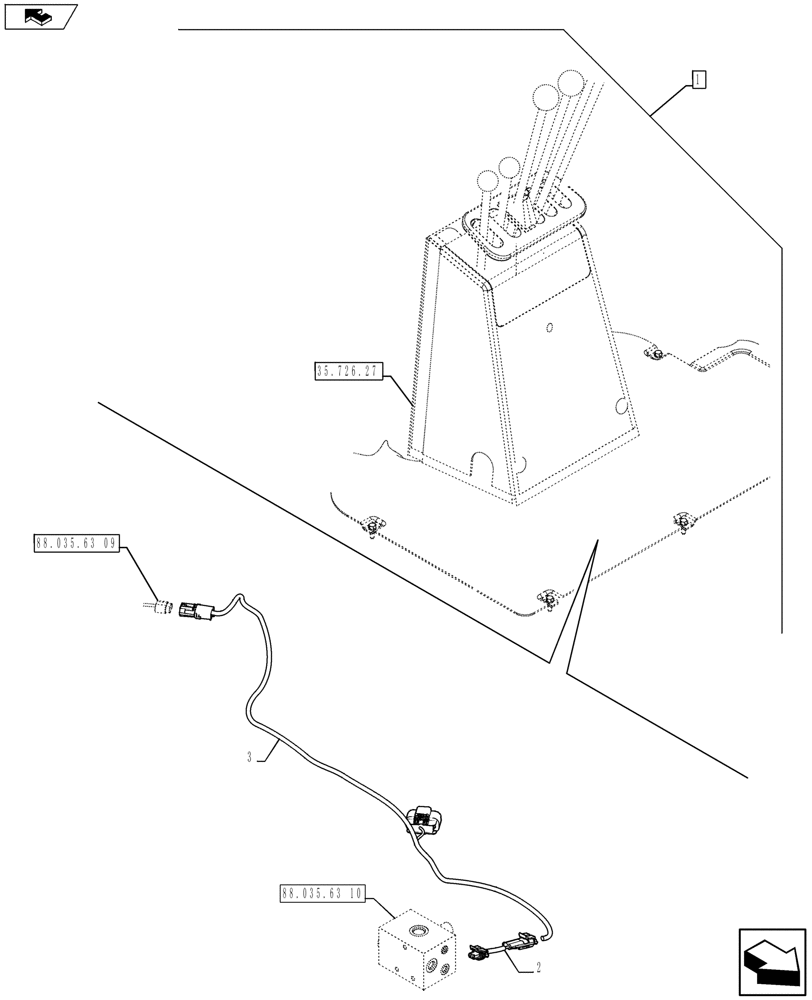

Схема запчастей Case 580SN - (88.035.63[08]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES
2
3
88.035.63 09
88.035.63 10
home
35.726.27
1
a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546986

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2 - 3

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.63 [01] to 88.035.63 [07], 88.035.63 [09] to 88.035.63 [10]

1шт.

2

84386573

WIRE HARNESS

1шт.

3

84292390

WIRE HARNESS

1шт.

Выбрано товаров: 5
