(88.035.63[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER

Запчасти Case 580SN (88.035.63[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES

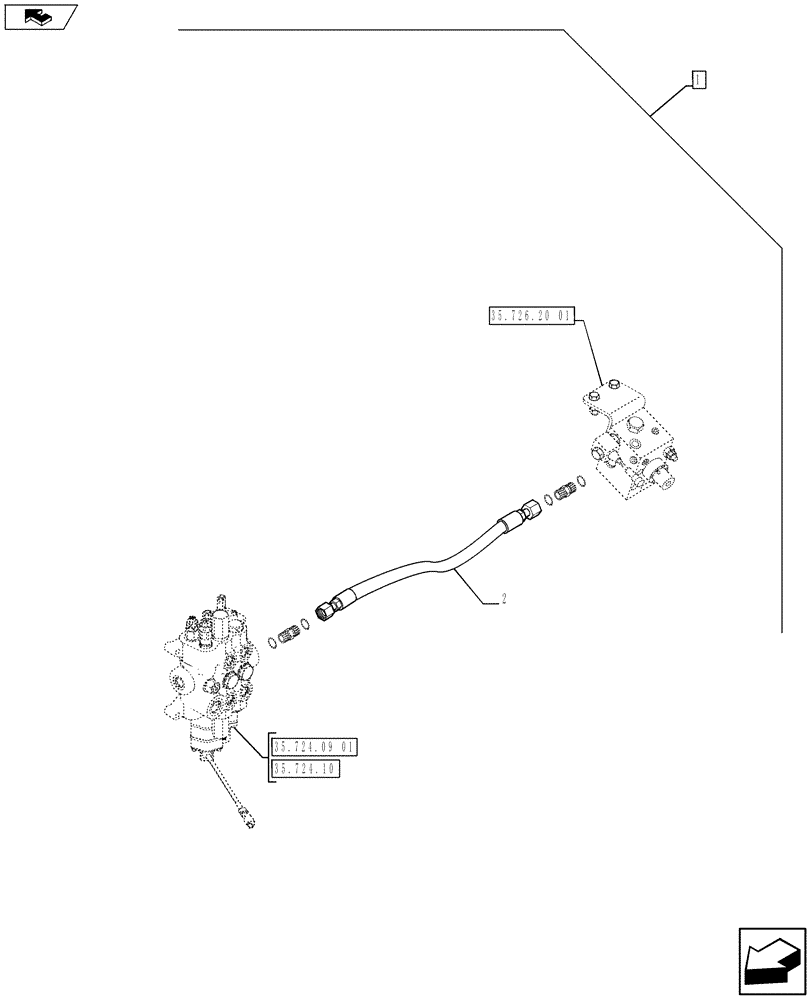

Схема запчастей Case 580SN - (88.035.63[07]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES
2
home
1
35.726.20 01
35.724.10
35.724.09 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546986

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.63 [01] to 88.035.63 [06], 88.035.63 [08] to 88.035.63 [10]

1шт.

2

84283267

HOSE ASSY.,19mm ID x 480mm L, SAE 100R16 Type S

1шт.

Выбрано товаров: 4
