(88.035.63[05]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER

Запчасти Case 580SN (88.035.63[05]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES

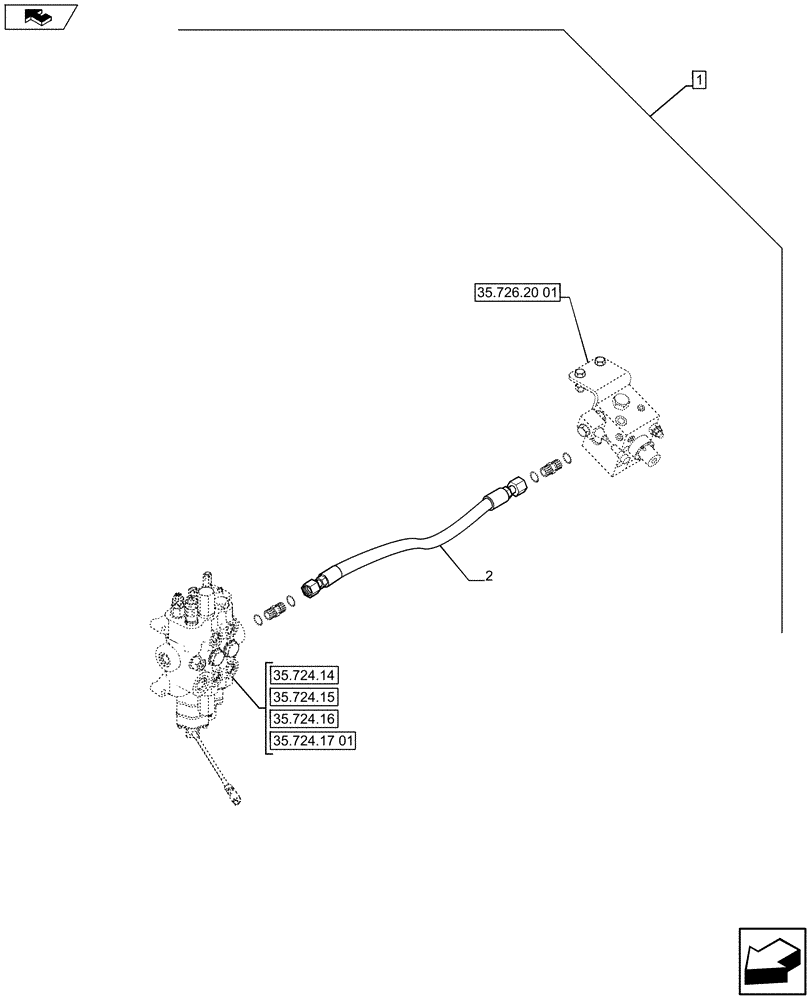

Схема запчастей Case 580SN - (88.035.63[05]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES
35.724.17 01
35.724.15
2
35.724.14
35.726.20 01
1
home
35.724.16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546986

CONSTRUCTION DIA

Uni Dir. Mechanical Control STD Dipper, Incl 2

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.63 [01] to 88.035.63 [04], 88.035.63 [06] to 88.035.63 [10]

1шт.

2

84283268

HOSE ASSY.,19mm ID x 440mm L, SAE 100R16 Type S

1шт.
