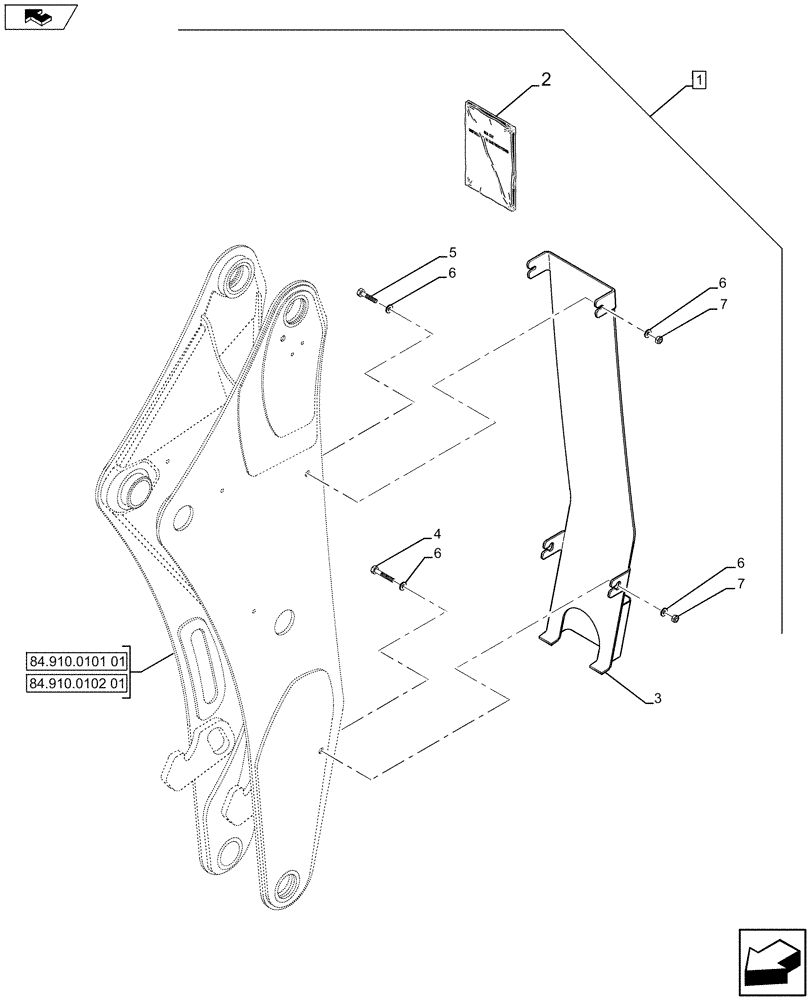

Запчасти Case 580SN (88.035.63[01]) - DIA KIT, UNI DIR. MECHANICAL CONTROL STD DIPPER (88) - ACCESSORIES

1

84546986

CONSTRUCTION DIA

Uni Dir Mechanical Control STD Dipper, Incl 2 - 7

1шт.

Refer to Installation Instruction for Correct Assembly Procedure

1шт.

See Ref. 88.035.63 [02] to 88.035.63 [10]

1шт.

2

84546987

INSTRUCTION

1шт.

3

84260388

GUARD

1шт.

4

84227693

CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8

2шт.

5

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

2шт.

6

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

8шт.

7

829-1412

NUT,M12, Cl 10.9

4шт.
