(88.035.62[02]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS

Запчасти Case 580SN (88.035.62[02]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS (88) - ACCESSORIES

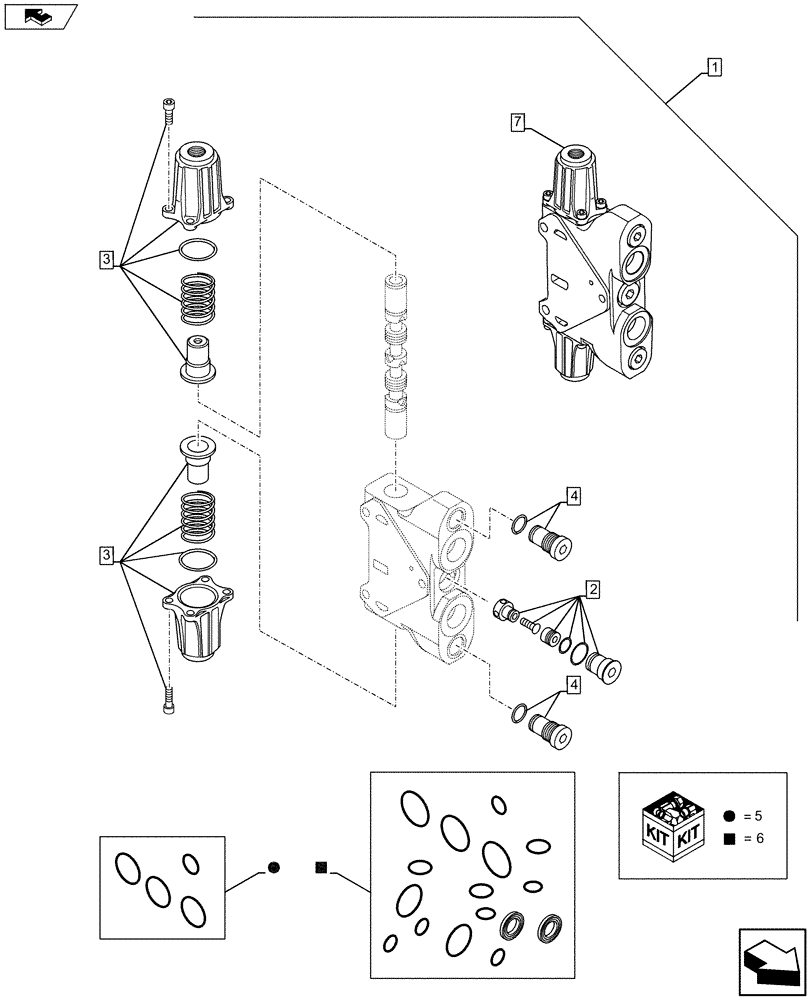

Схема запчастей Case 580SN - (88.035.62[02]) - DIA KIT, 3 SPOOL VALVE SECTIONS, TIE RODS (88) - ACCESSORIES
home
4
6
6
2
3
3
4
5
5
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84484679

SERVICE KIT

3 Spool Valve Sections, Tie Rods, Incl 2 - 7

1шт.

See Ref. 88.035.62 [01]

1шт.

2

84157590

COMPENSATOR

1шт.

3

87346914

KIT

1шт.

4

84232746

PLUG

2шт.

5

85825473

SEAL KIT

1шт.

6

87617657

O-RING KIT

1шт.

7

84295102

HYD VALVE SECTION

Assy, Incl 2 - 6

1шт.

Выбрано товаров: 8
