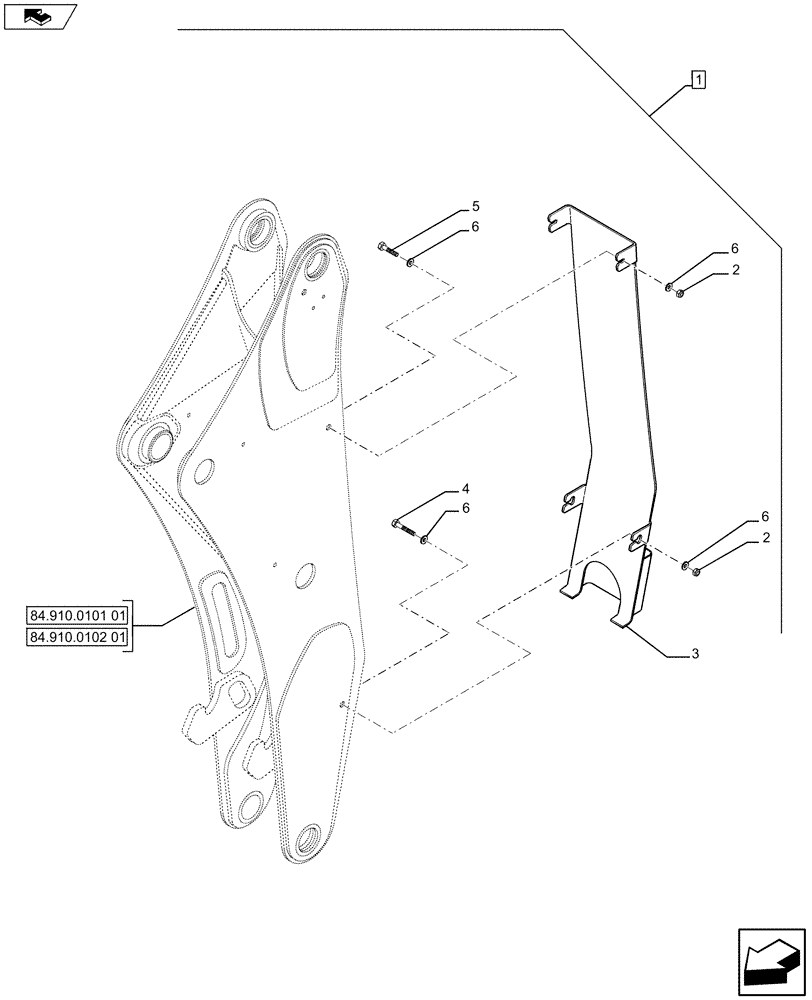

Запчасти Case 580SN (88.035.60[13]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES
![Схема запчастей Case 580SN - (88.035.60[13]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES](https://partsell.ru/storage/images/casece/3762022.png)
6
84.910.0101 01
84.910.0102 01
6
home
2
4
3
5
1
6
6
2
FIT
1:1
100%
№
Артикул
Название
Примечание
Количество
1
84546980
CONSTRUCTION DIA
NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD, Incl 2 - 6
1шт.
See Ref. 88.035.60 [01] to 88.035.60 [12], 88.035.60 [14]
1шт.
Refer to Installation Instructions for Correct Assembly Procedure
1шт.
2
829-1412
NUT,M12, Cl 10.9
4шт.
3
84260388
GUARD
1шт.
4
84227693
CARRIAGE BOLT,Reg Sq Nk, M12 x 1.75 x 65mm, Cl 8.8
2шт.
5
811-12040
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
2шт.
6
86592701
WASHER,13mm ID x 35mm OD x 5mm Thk
8шт.
