Запчасти Case 580SN (10.406.0201[02]) - VAR - 423000, 442082, 747854 - COOLANT EXPANSION RESERVOIR (10) - ENGINE

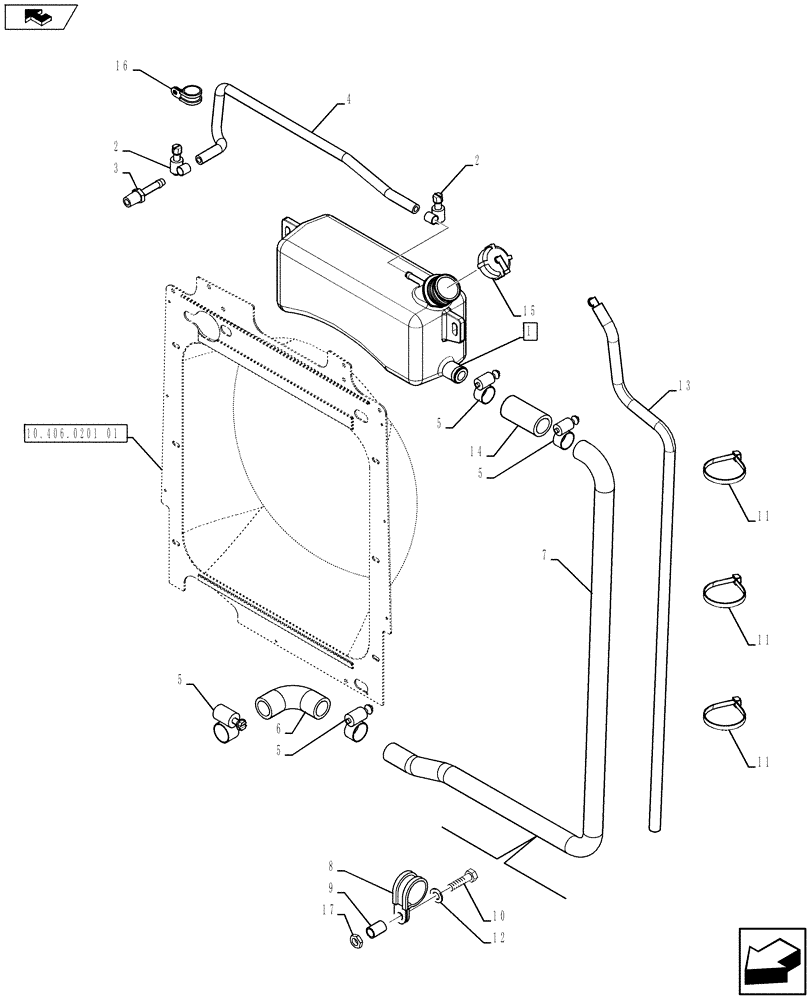

Схема запчастей Case 580SN - (10.406.0201[02]) - VAR - 423000, 442082, 747854 - COOLANT EXPANSION RESERVOIR (10) - ENGINE
5
5
10
14
5
3
12
1
7
home
11
10.406.0201 01
16
5
2
2
15
13
4
6
11
9
8
17
11

Артикул

Название

Примечание

Количество

1

87674844

RESERVOIR, COOLANT E,3L

Assy, Incl 15

1шт.

2

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

3

87301325

FITTING,5/16" Hose X 1/4" NPTF Beaded

1шт.

4

87715487

RADIATOR HOSE,7.90 mm ID x 440.00 mm, SAE J30, SAE 30R6 Or SAE 20 R4 Class D1

1шт.

5

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

6

87454376

HOSE,25mm ID, 29.95mm OD, 90 Degree

1шт.

7

87557237

TUBE,1" OD

1шт.

8

515-22254

CLAMP,1", Insul, 5/16" Bolt

1шт.

9

87418360

SPACER,9.8mm ID x 16mm OD x 16mm W

1шт.

10

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

1шт.

11

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

13

87616934

HOSE,6.35mm ID x 750mm L, SAE 30R6

1шт.

14

87367622

HOSE,25.40 mm ID x 60.00 mm, SAE 20R3 CLASS D-1 Or D-2

1шт.

15

85803019

RADIATOR CAP

1шт.

16

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

Выбрано товаров: 17
