(88.035.60[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD

Запчасти Case 580SN (88.035.60[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES

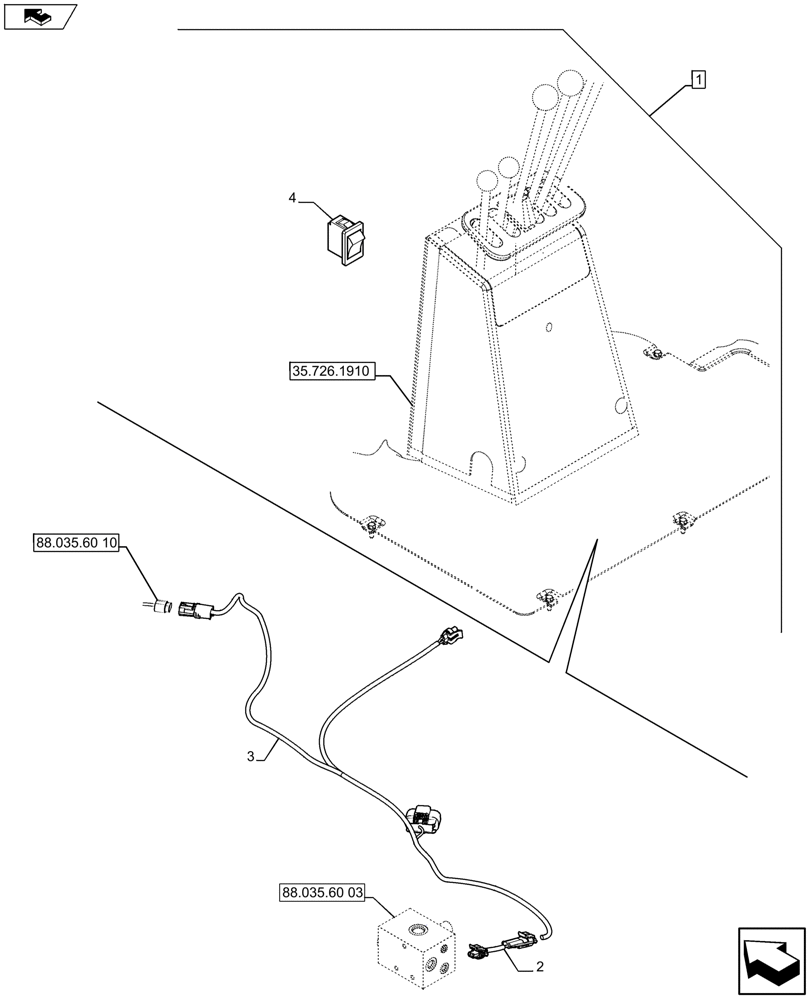

Схема запчастей Case 580SN - (88.035.60[09]) - DIA KIT, NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD (88) - ACCESSORIES
88.035.60 03
4
3
2
1
a
88.035.60 10
35.726.1910
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546980

CONSTRUCTION DIA

NO AUX TO COMBO AUX, MECHANICAL CONTROLS, STANDARD, Incl 2 - 4

1шт.

See Ref. 88.035.60 [01] to 88.035.60 [08], 88.035.60 [10] to 88.035.60 [14]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292391

WIRE HARNESS

Combo AUX, Mech Control, Hammer

1шт.

4

84241093

SWITCH

Bi - Dir Uni - Dir Selector

1шт.

Выбрано товаров: 6
