Запчасти Case 580SN (88.035.59[06]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

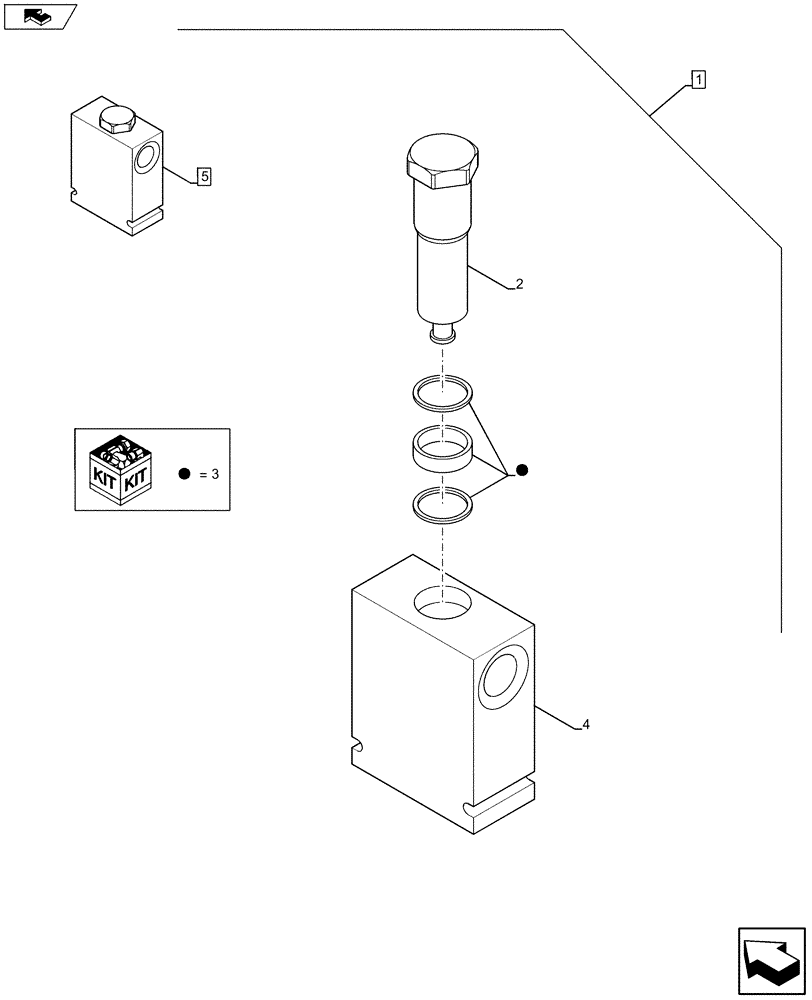

Схема запчастей Case 580SN - (88.035.59[06]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
3
4
home
3
2
1
5

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 5

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.59 [01] to 88.035.59 [05]

1шт.

2

84422094

CHECK VALVE

1шт.

3

84422097

SERVICE KIT

2шт.

4

NSS

NOT SOLD SEPARAT

Body, Incl in 5

1шт.

5

84422084

CHECK VALVE

Assy, Incl 2 - 4

1шт.

Выбрано товаров: 7
