Запчасти Case 580SN (88.035.59[04]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES

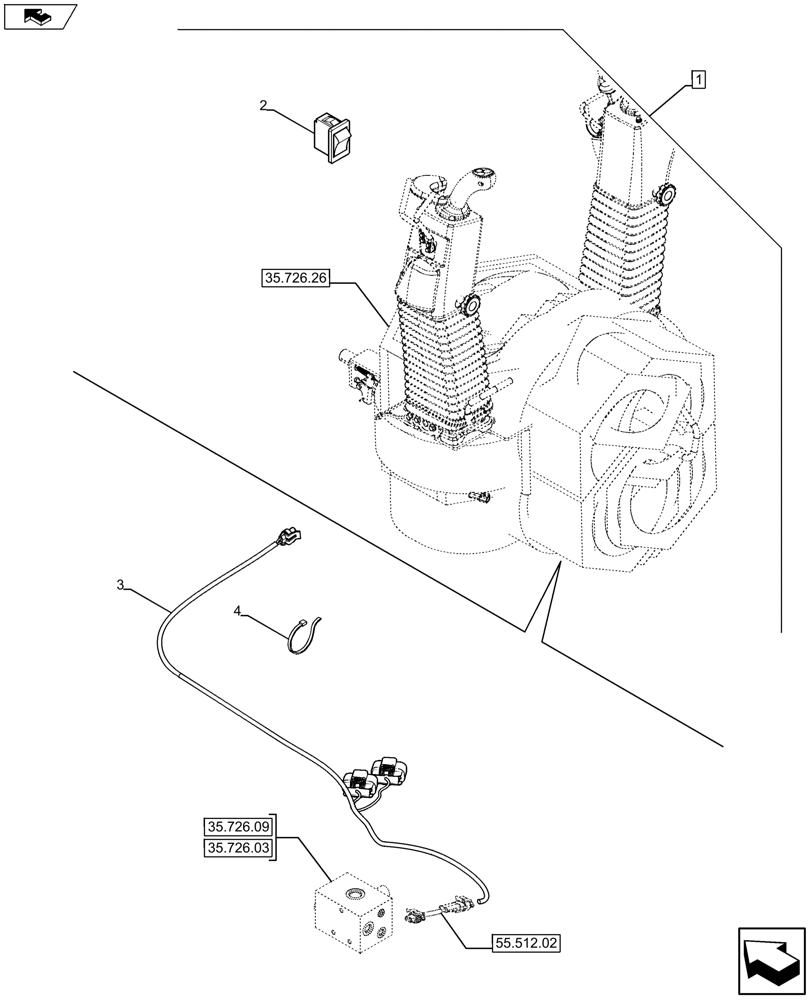

Схема запчастей Case 580SN - (88.035.59[04]) - DIA KIT, UNI-AUX TO COMBO, STD, POWER CONTROL (88) - ACCESSORIES
35.726.03
4
home
55.512.02
a
2
35.726.09
1
3
35.726.26

Артикул

Название

Примечание

Количество

1

84527103

CONSTRUCTION DIA

Uni-Aux to Combo, STD, PC, Incl 2 - 4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.59 [01] to 88.035.59 [03], 88.035.59 [05] to 88.035.59 [06]

1шт.

2

84241093

SWITCH

1шт.

3

84292393

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
