(88.035.58[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE

Запчасти Case 580SN (88.035.58[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

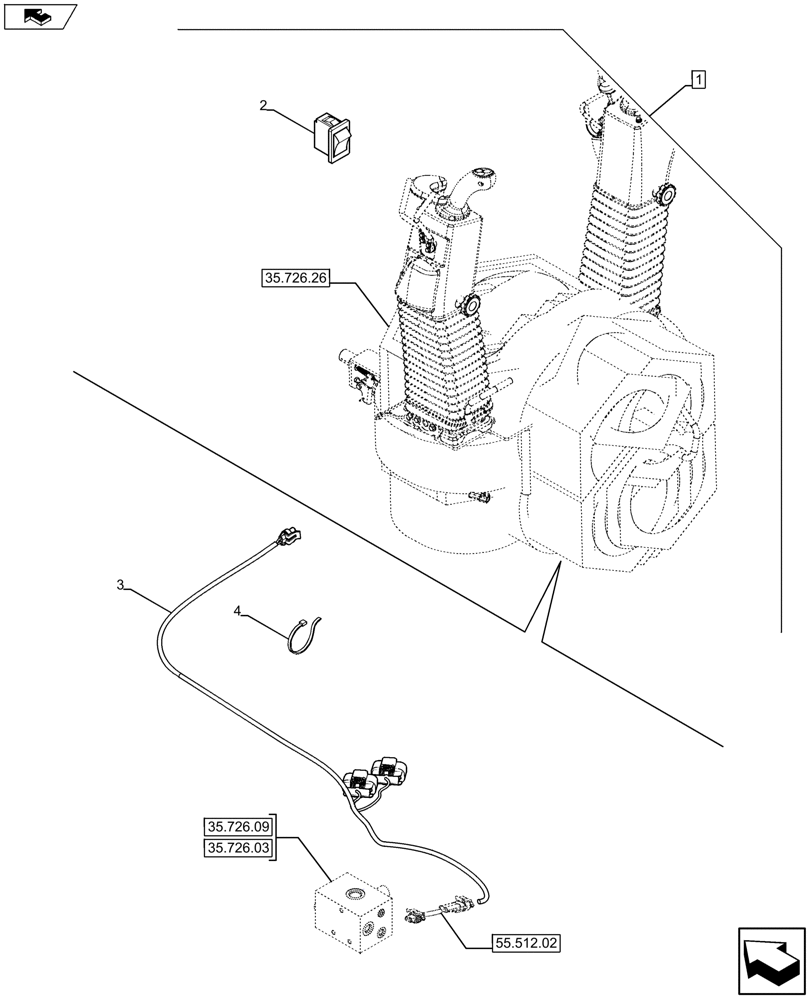

Схема запчастей Case 580SN - (88.035.58[04]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES
a
55.512.02
35.726.09
35.726.26
4
2
3
1
home
35.726.03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84527084

CONSTRUCTION DIA

Uni-Aux to Combo Aux, Pilot, Extendable Hoe, Incl 2 - 4

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

See Ref. 88.035.58 [01] to 88.035.58 [03], 88.035.58 [05] to 88.035.58 [06]

1шт.

2

84241093

SWITCH

1шт.

3

84292393

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

Выбрано товаров: 6
