(88.035.50[03]) - DIA KIT. POWER LIFT

Запчасти Case 580SN (88.035.50[03]) - DIA KIT. POWER LIFT (88) - ACCESSORIES

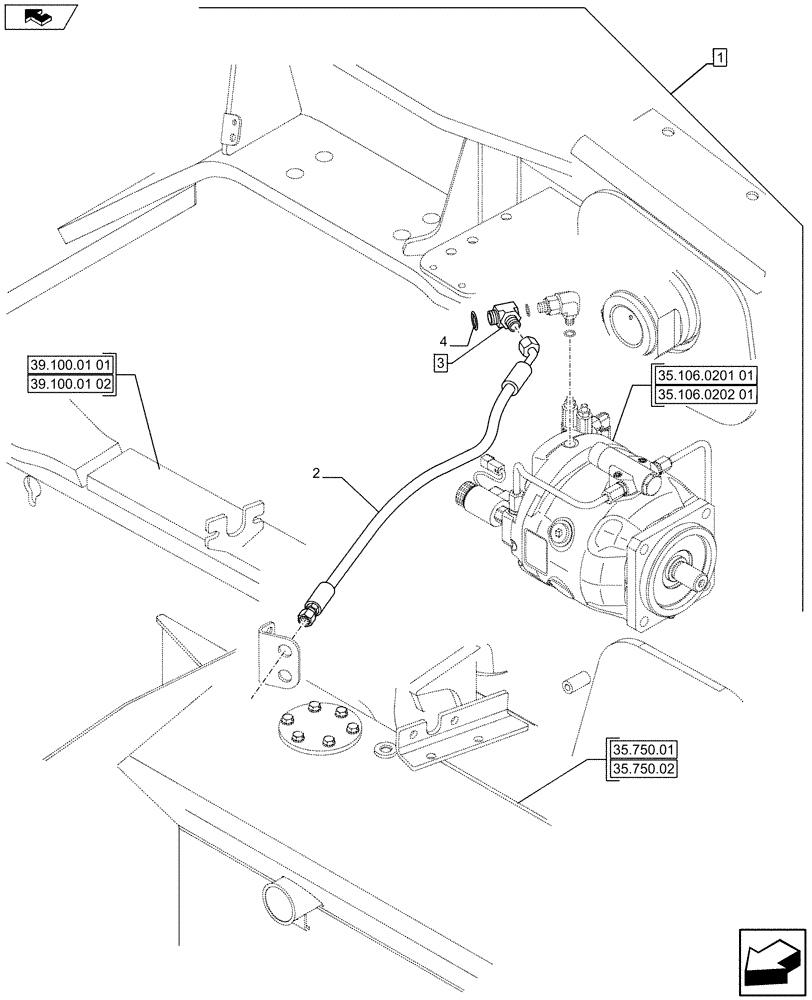

Схема запчастей Case 580SN - (88.035.50[03]) - DIA KIT. POWER LIFT (88) - ACCESSORIES
35.106.0202 01
2
home
4
35.750.01
35.106.0201 01
1
39.100.01 02
39.100.01 01
35.750.02
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84561133

CONSTRUCTION DIA

Power Lift, Incl 2 - 4

1шт.

See Ref. 88.035.50 [01] to 88.035.50 [02], 88.035.50 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84537170

HOSE,6.3mm ID, 685mm L, SAE100R16 type S

1шт.

3

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

1шт.

4

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
