(88.035.50[02]) - DIA KIT, POWER LIFT

Запчасти Case 580SN (88.035.50[02]) - DIA KIT, POWER LIFT (88) - ACCESSORIES

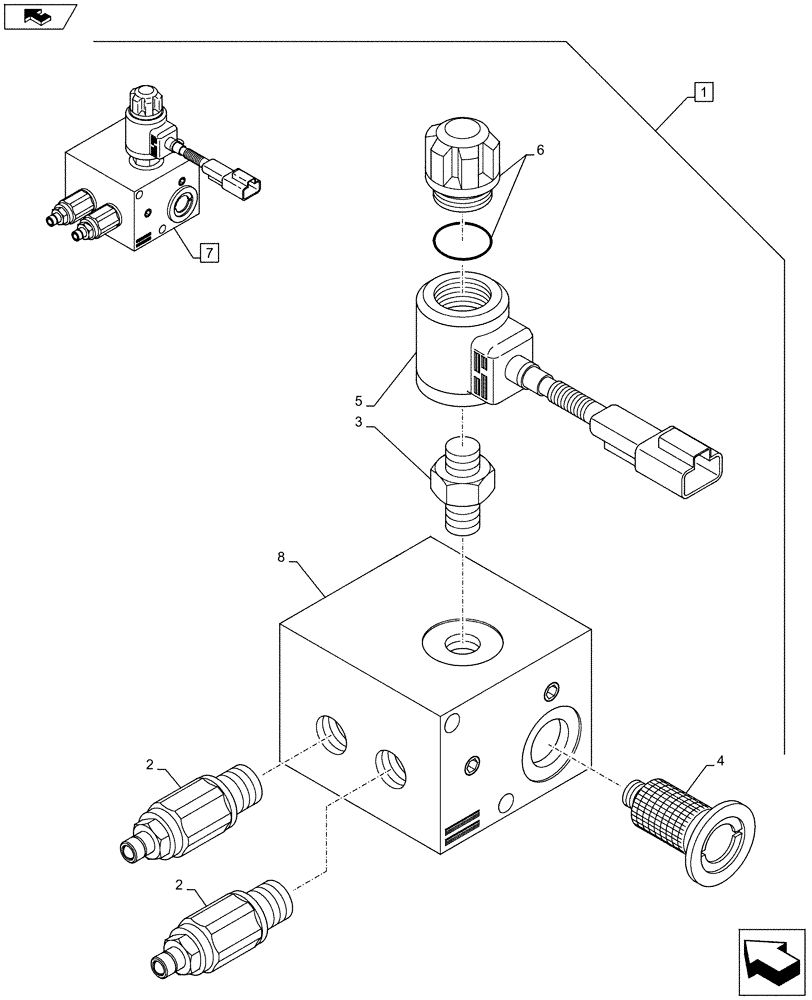

Схема запчастей Case 580SN - (88.035.50[02]) - DIA KIT, POWER LIFT (88) - ACCESSORIES
5
home
2
6
4
7
2
3
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84561133

CONSTRUCTION DIA

Power Lift, Incl 2 - 8

1шт.

See Ref. 88.035.50 [01], 88.035.50 [03] to 88.035.50 [04]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84338932

VALVE

Heavy Lift Relief

2шт.

3

84545954

SOLENOID VALVE

Power Lift

1шт.

4

84338934

FILTER STRAINER

W/Orifice

1шт.

5

84338935

COIL

Heavy Lift

1шт.

6

84338936

SERVICE KIT

1шт.

7

84527714

CONTROL VALVE

Assy, Incl 2 - 6, 8

1шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 7

1шт.
