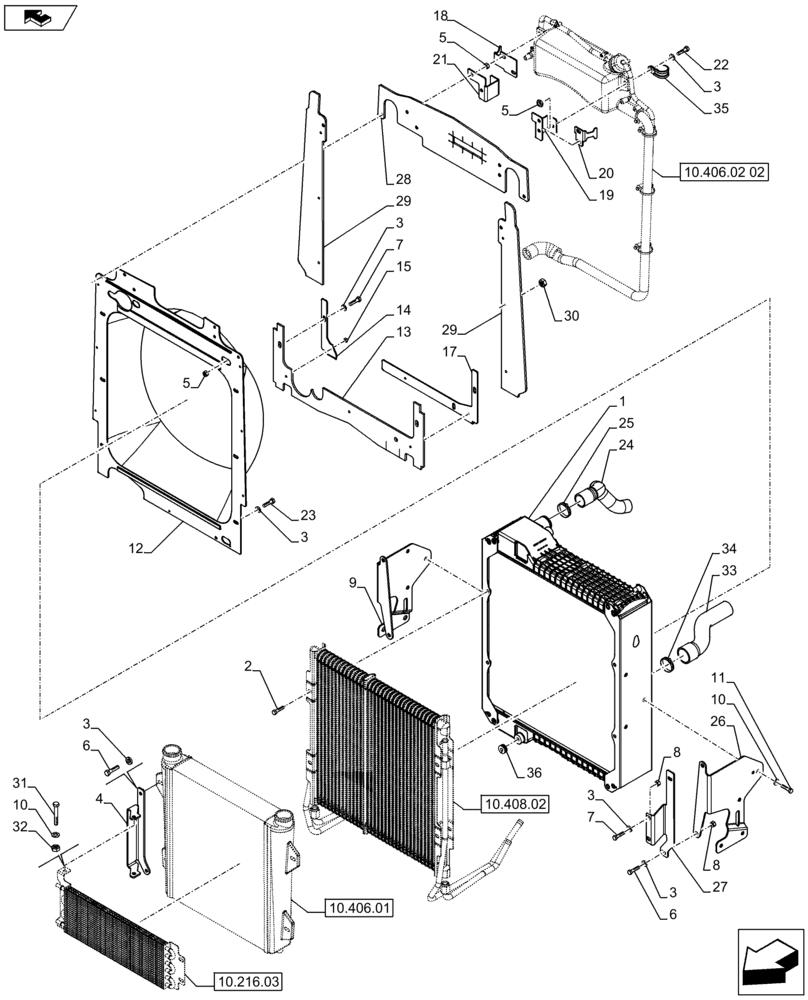

Запчасти Case 580SN (10.406.02[01]) - VAR - 747853, 747855 - RADIATOR & SHROUD, MOUNTING PARTS (10) - ENGINE

1

87576645

RADIATOR

1шт.

Only for 580N Models

1шт.

1

84497735

RADIATOR

1шт.

Only for 580SN, 580SN WT, 590SN Models

1шт.

2

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

22шт.

4

87606977

BRACKET, PIVOT

1шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

6шт.

6

614-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

4шт.

7

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

8

833-40408

NUT,M8, U

6шт.

9

87602286

BRACKET

RH

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

7шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

12

84350176

SHROUD

1шт.

13

84540367

SEAL,614mm L

1шт.

14

87446081

RETAINING PLATE,195mm x 62mm x 43mm L

1шт.

15

87301356

RIVET,Pop, 3/16" x .700"

1шт.

16

76904

DRAINCOCK/TAP SUPPLY

1шт.

17

87446082

RETAINING PLATE,390mm x 195mm x 43mm L

1шт.

18

84387496

BRACKET

1шт.

19

84387500

BRACKET

1шт.

20

84387348

BRACKET

1шт.

21

84387349

BRACKET

1шт.

22

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

23

806-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9

4шт.

24

84329358

RADIATOR HOSE

1шт.

25

87647029

HOSE CLAMP,40-64mm

1шт.

26

87602287

BRACKET

LH

1шт.

27

87606979

BRACKET

LH

1шт.

28

84485920

SEAL,616mm L

1шт.

29

84403324

RUBBER SEAL,664mm L

2шт.

30

87301355

RIVET,Pop, 3/16" x .575"

6шт.

31

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

32

412141

NUT,M10 x 1.5, Cl 8

1шт.

33

84474837

RADIATOR HOSE

1шт.

34

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

1шт.

35

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

1шт.
