Запчасти Case 580SN (88.035.43[05]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES

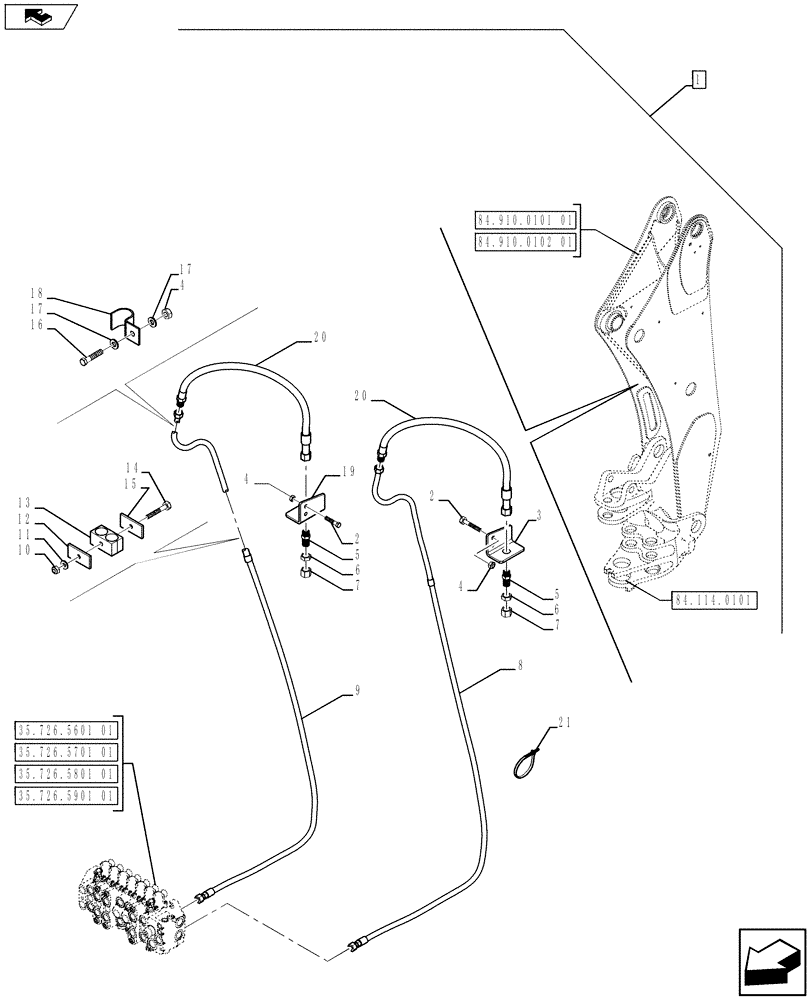

Схема запчастей Case 580SN - (88.035.43[05]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES
7
15
6
8
84.910.0101 01
20
4
18
35.726.5901 01
13
35.726.5801 01
12
20
35.726.5601 01
5
4
84.114.0101
3
16
21
10
2
1
14
17
4
5
19
7
6
35.726.5701 01
9
11
17
2
84.910.0102 01
home

Артикул

Название

Примечание

Количество

1

47360416

CONSTRUCTION DIA

NO AUX TO COMBO, STANDARD, PILOT CONTROLS, Incl 2 -21

1шт.

See Ref. 88.035.43 [01] to 88.035.43 [04], 88.035.43 [06] to 88.035.43 [10]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

3

84305006

BRACKET

1шт.

4

412141

NUT,M10 x 1.5, Cl 8

6шт.

5

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

2шт.

6

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

7

201-907

CAP,1-3/16" - 12 ORFS

2шт.

8

84280511

HYD TUBE,19mm ID x 2759mm L

1шт.

9

84280510

HYD TUBE,19mm ID x 2805mm L

1шт.

10

412250

NUT,M8 x 1.25, Cl 8

2шт.

11

84342644

PLATE

2шт.

12

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

13

87000146

CLAMP

2шт.

14

120108

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8, Full Thd

2шт.

15

84283495

SECURING STRAP

2шт.

16

120070

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

2шт.

17

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

18

242459A1

SHIN

2шт.

19

84305054

BRACKET

1шт.

20

84322596

HOSE,19.05mm ID x 906mm L, SAE 100R16

2шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

Выбрано товаров: 23
