(88.035.43[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS

Запчасти Case 580SN (88.035.43[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES

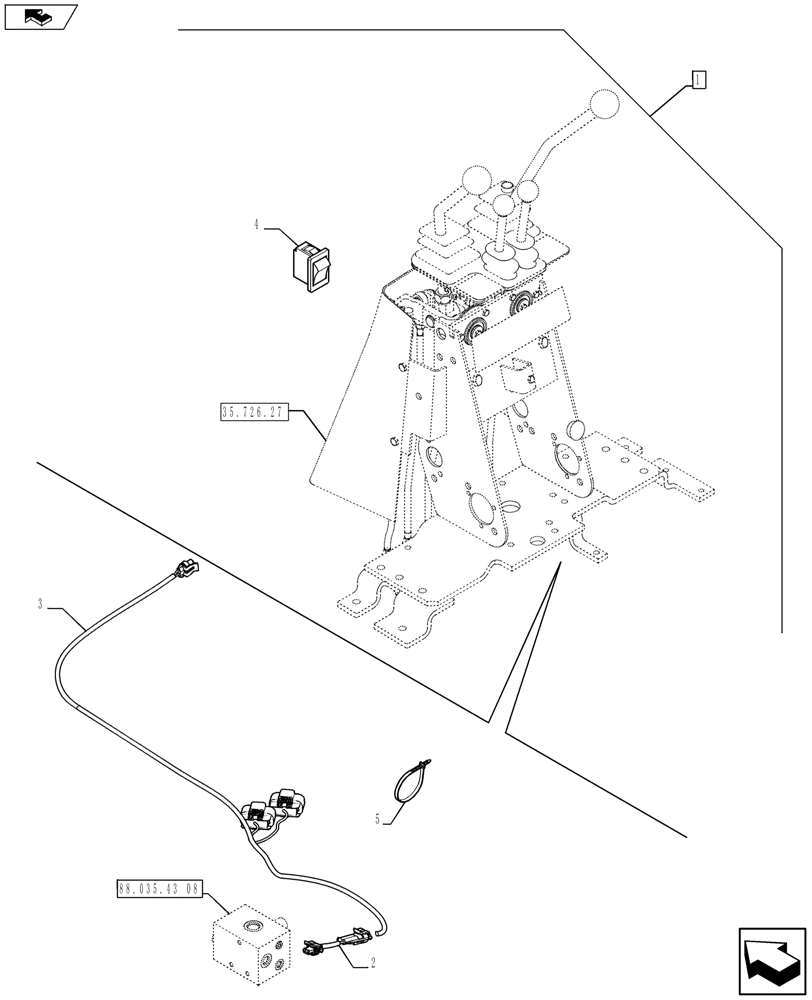

Схема запчастей Case 580SN - (88.035.43[04]) - DIA KIT, NO AUX TO COMBO, STANDARD, PILOT CONTROLS (88) - ACCESSORIES
3
home
1
4
5
a
88.035.43 08
2
35.726.27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360416

CONSTRUCTION DIA

NO AUX TO COMBO, STANDARD, PILOT CONTROLS, Incl 2 -5

1шт.

See Ref. 88.035.43 [01] to 88.035.43 [03], 88.035.43 [05] to 88.035.43 [10]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292393

WIRE HARNESS

Combo AUX, Pilot Control, Hammer

1шт.

4

84241093

SWITCH

Bi - Dir Uni - Dir Selector

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

3шт.
