(88.035.42[11]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 580SN (88.035.42[11]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

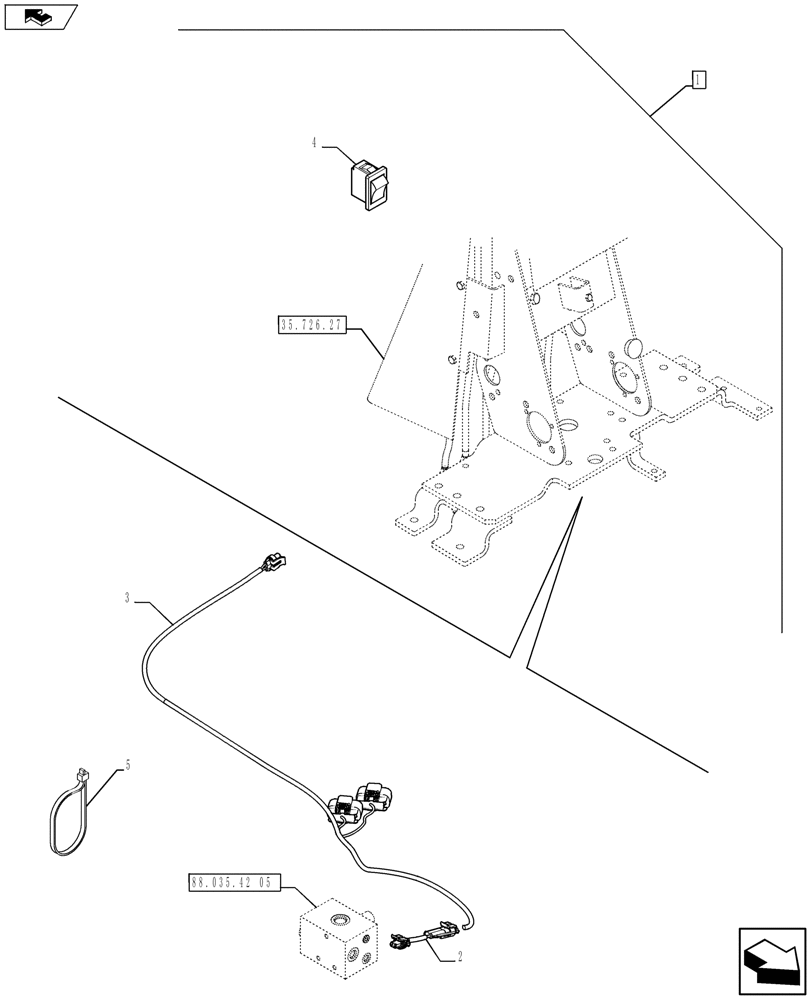

Схема запчастей Case 580SN - (88.035.42[11]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
88.035.42 05
2
a
1
3
4
5
35.726.27
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360071

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 5

1шт.

See Ref. 88.035.42 [01] to 88.035.42 [10]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

1шт.

3

84292393

WIRE HARNESS

1шт.

4

84241093

SWITCH

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

Выбрано товаров: 7
