Запчасти Case 580SN (88.035.42[10]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

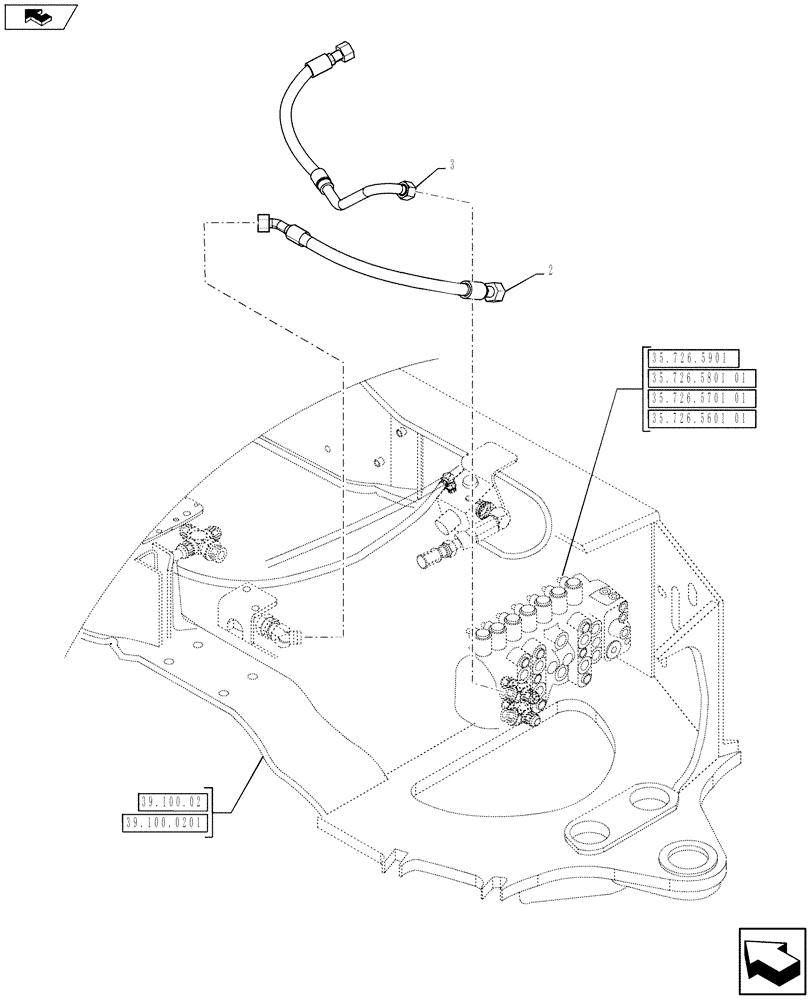

Схема запчастей Case 580SN - (88.035.42[10]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
2
35.726.5801 01
35.726.5901
35.726.5601 01
35.726.5701 01
3
39.100.0201
39.100.02
home

Артикул

Название

Примечание

Количество

1

47360071

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 3

1шт.

See Ref. 88.035.42 [01] to 88.035.42 [09], 88.035.42 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84292795

HOSE ASSY.,19mm ID x 698mm L

1шт.

3

84292027

HYD TUBE

1шт.
