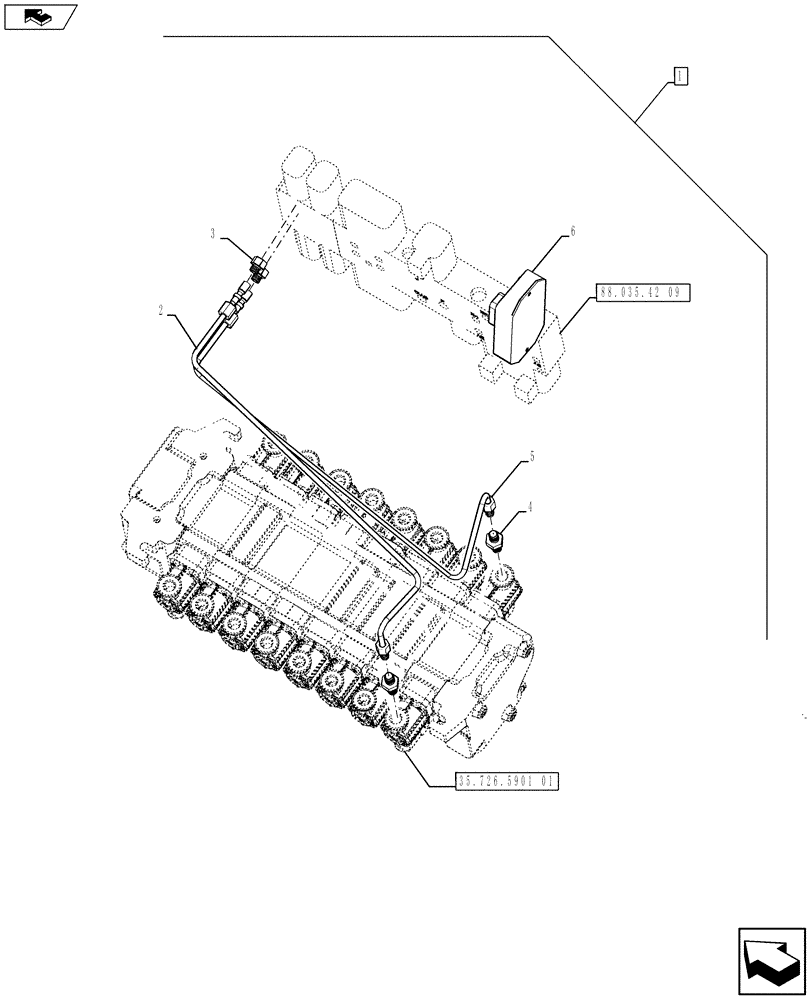

Запчасти Case 580SN (88.035.42[08]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

1

47360071

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 6, Serial Range: -`0

1шт.

See Ref. 88.035.42 [01] to 88.035.42 [07], 88.035.42 [09] to 88.035.42 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87437635

HYD TUBE

1шт.

3

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

4

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

2шт.

5

87440837

HYD TUBE

1шт.

6

84266025

MODULE

1шт.
