(88.035.42[05]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 580SN (88.035.42[05]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

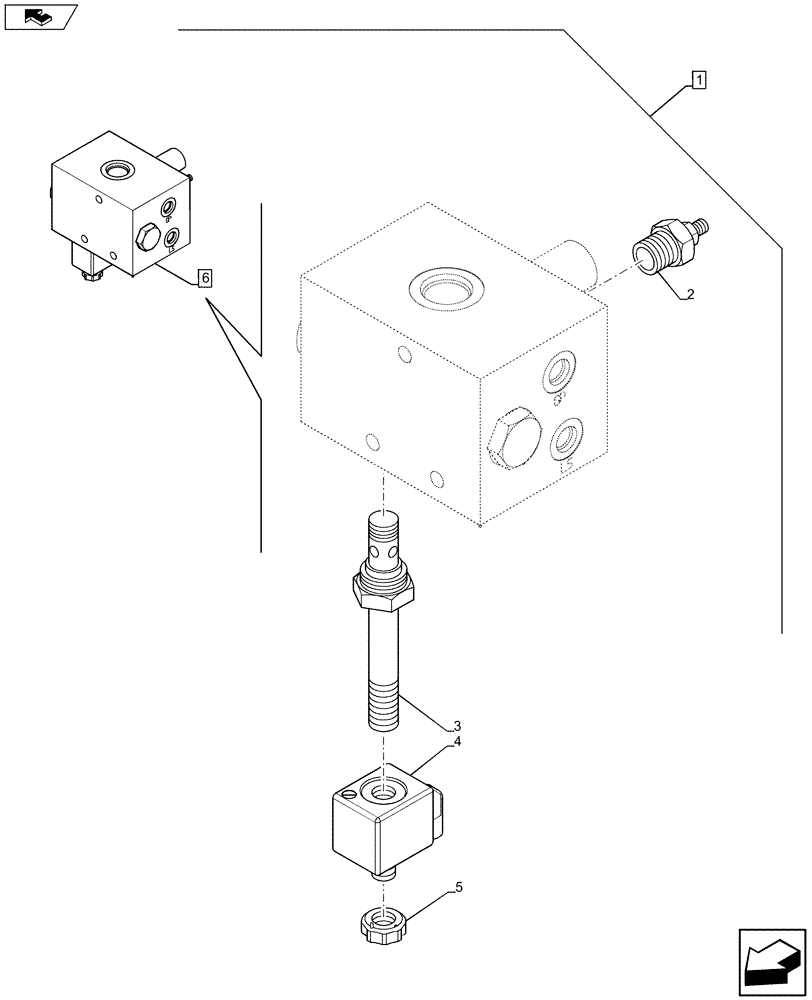

Схема запчастей Case 580SN - (88.035.42[05]) - DIA KIT, NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
2
home
4
5
3
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47360071

CONSTRUCTION DIA

NO AUX TO COMBO, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 6

1шт.

See Ref. 88.035.42 [01] to 88.035.42 [04], 88.035.42 [06] to 88.035.42 [11]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247110

VALVE

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
