Запчасти Case 580SN (88.035.39[07]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

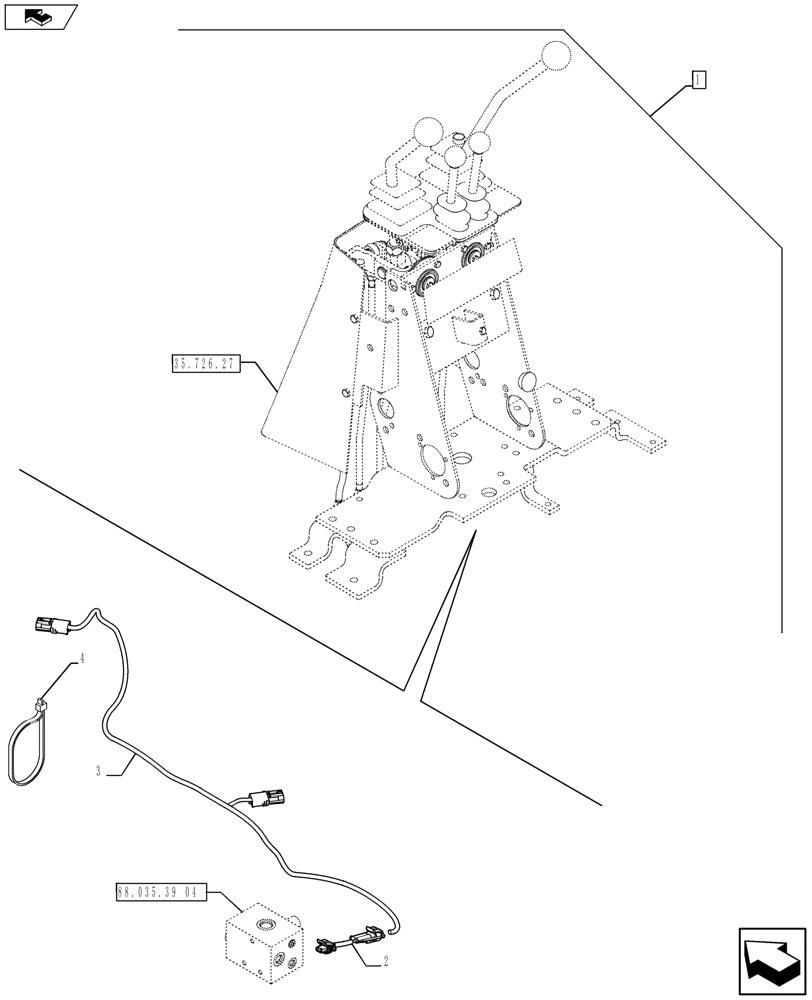

Схема запчастей Case 580SN - (88.035.39[07]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
2
88.035.39 04
a
1
4
35.726.27
home
3

Артикул

Название

Примечание

Количество

1

47359725

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 4

1шт.

See Ref. 88.035.39 [01] to 88.035.39 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84386573

WIRE HARNESS

Rexroth Jumper

1шт.

3

84292392

WIRE HARNESS

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

3шт.

Выбрано товаров: 6
