(88.035.39[04]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS

Запчасти Case 580SN (88.035.39[04]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES

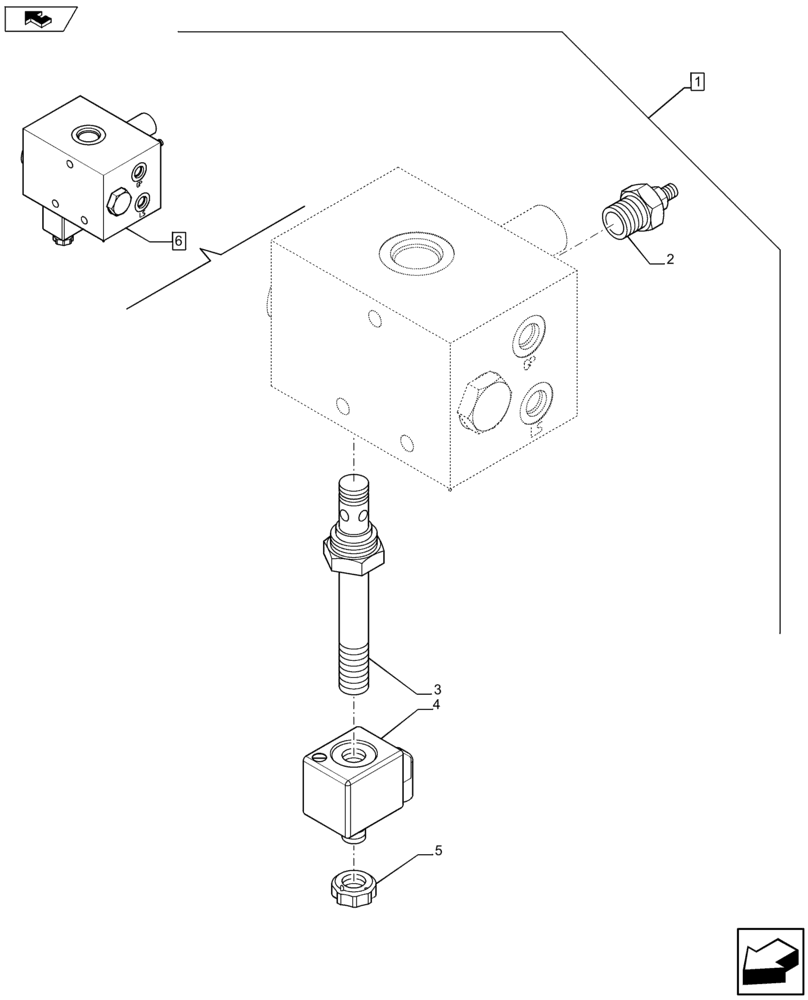

Схема запчастей Case 580SN - (88.035.39[04]) - DIA KIT, UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS (88) - ACCESSORIES
home
3
2
4
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47359725

CONSTRUCTION DIA

UNI-AUX, EXTENDIBLE HOE, PILOT CONTROLS, Incl 2 - 6

1шт.

See Ref. 88.035.39 [01] to 88.035.39 [03], 88.035.39 [05] to 88.035.39 [07]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9970178

VALVE PRESSURE RELIE

1шт.

3

47491458

SOLENOID VALVE

1шт.

4

84478803

COIL

1шт.

5

9970384

RING NUT

1шт.

6

84247110

VALVE

Assy, Incl 2 - 5

1шт.

Выбрано товаров: 8
