Запчасти Case 580SN (88.035.38[01]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES

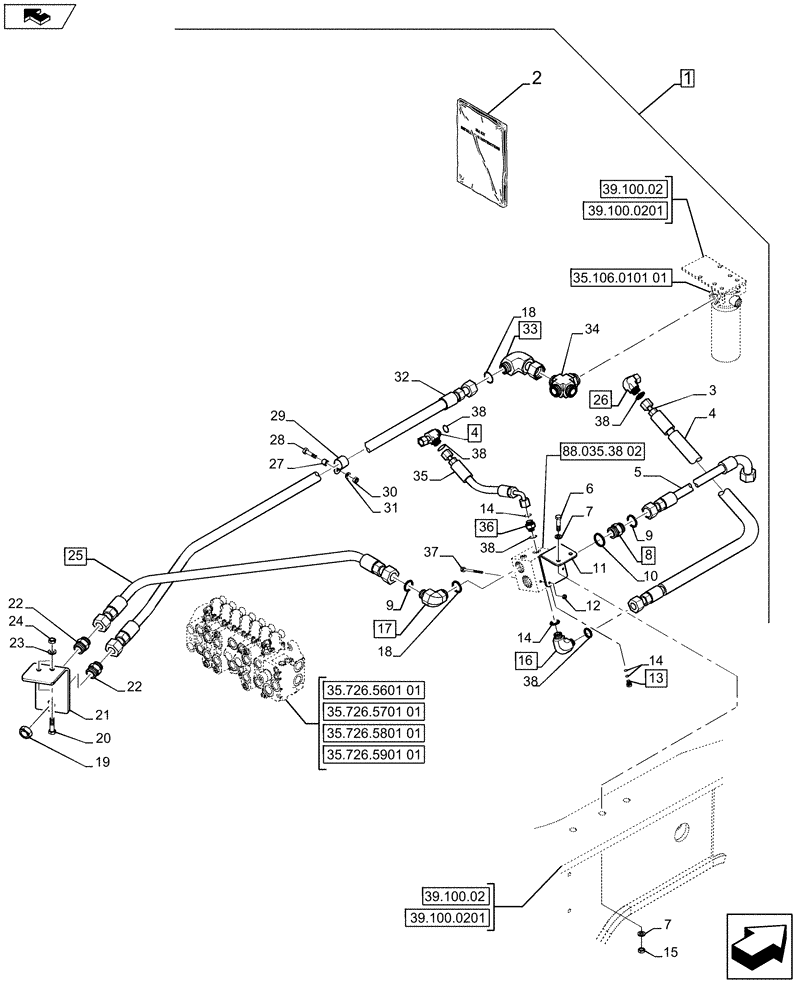

Схема запчастей Case 580SN - (88.035.38[01]) - DIA KIT, UNI-AUX STANDARD PILOT CONTROLS (88) - ACCESSORIES
32
7
31
22
38
4
36
21
9
9
37
22
13
18
25
29
35.726.5901 01
39.100.0201
19
8
2
5
38
28
11
14
33
35.726.5601 01
24
15
35.726.5801 01
14
3
26
35.106.0101 01
88.035.38 02
39.100.0201
35.726.5701 01
7
38
30
17
14
38
10
39.100.02
home
38
27
35
18
20
39.100.02
4
16
12
6
23
1
34

Артикул

Название

Примечание

Количество

1

47358915

CONSTRUCTION DIA

UNI-AUX STANDARD PILOT CONTROLS, Incl 2 - 38

1шт.

See Ref. 88.035.38 [02] to 88.035.38 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

47358921

INSTRUCTION

1шт.

3

84573738

HOSE,10mm ID x 560mm L

1шт.

4

84989848

TEE,11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC

Assy, Incl 38

2шт.

5

84275042

HOSE ASSY.,19mm ID x 411mm L

1шт.

6

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

7

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

8

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Assy, Incl 9 - 10

1шт.

9

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

84257782

BRACKET

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

2шт.

13

76349

PLUG,9/16" - 18 ORB

Assy, Incl 14 (q.ty 2)

1шт.

14

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

337475

NUT,M12, Cl 10

2шт.

16

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

Assy, Incl 38, 14

1шт.

17

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Assy, Incl 9, 18

1шт.

18

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

19

86639084

BHD LOCK NUT,1-7/16"-12, ORFS, Bulkhead

2шт.

20

86508618

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

2шт.

21

84407250

BRACKET, SUPPORTING

1шт.

22

86639060

UNION,1-7/16"-12 ORFS, Bulkhead

2шт.

23

3416158

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

24

86500689

NUT,M10 x 1.5, Cl 10

2шт.

25

84407248

HYD TUBE

Assy, Incl 26

1шт.

26

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

1шт.

27

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

28

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

29

86637996

CLAMP,28.6mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

30

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

31

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

32

84407245

HYDRAULIC HOSE,19mm ID x 953mm L

1шт.

33

84989413

ELBOW,90 Degree, 1 7/16"-12 ORFS x 1 7/16"-12 Fem Sw

Assy, Incl 18

1шт.

34

84259313

FITTING,1"7/16 - 12 ORFS x 1"5/16 - 12 ORB

1шт.

35

84259315

HOSE ASSY.,10mm ID x 288mm L

1шт.

36

9993143

HYD CONNECTOR,11/16" - 16 ORFS x 9/16" - 18 ORB

Assy, Incl 38, 14

1шт.

37

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

38

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

Выбрано товаров: 40
