Запчасти Case 580SN (88.035.30[01]) - DIA KIT, CONVERSION FT SWING TO 2 LEVER, STANDARD DIPPER (88) - ACCESSORIES

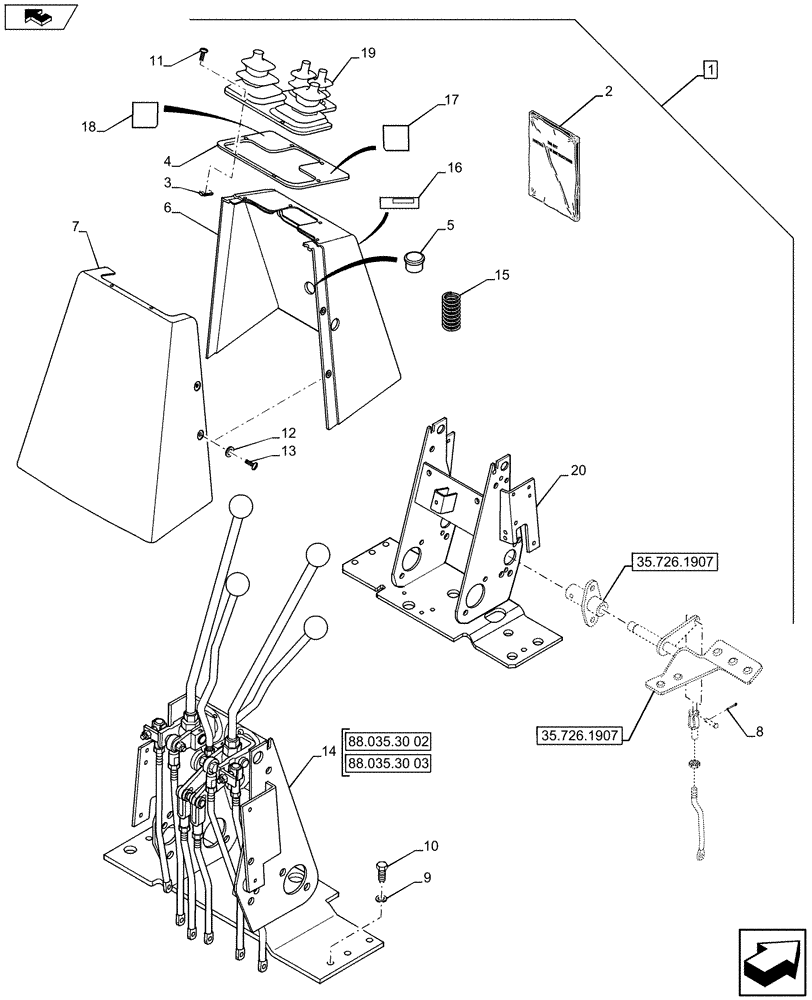

Схема запчастей Case 580SN - (88.035.30[01]) - DIA KIT, CONVERSION FT SWING TO 2 LEVER, STANDARD DIPPER (88) - ACCESSORIES
6
16
2
8
15
9
7
4
home
11
12
3
35.726.1907
5
1
13
88.035.30 02
14
10
20
18
19
88.035.30 03
17
35.726.1907

Артикул

Название

Примечание

Количество

1

84487939

KIT

Conversion Swing to 2 Lever, Incl 2 - 20, Serial Range: -`0

1шт.

See Ref. 88.035.30 [02] to 88.035.30 [03]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84487940

INSTRUCTION

1шт.

3

131-861

SPRING NUT,Tinn, U, #10-24

6шт.

4

136824A1

LARGE PLATE

Boot Retaining

1шт.

5

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

6

390690A1

COVER

Front Console

1шт.

7

390758A1

COVER

Rear Console

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

1шт.

9

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

13/32 x 1 1/8 x .134

4шт.

10

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

11

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

6шт.

12

87310139

WASHER,7.14mm ID x 15.88mm OD x 1.65mm Thk

5шт.

13

87310156

SELF-TAP SCREW,M6.3 x 1.8 x 16mm, Stainless

5шт.

14

87309482

LEVER

Control Assembly

1шт.

15

87429150

VALVE SPRING

Swing Section Centering

1шт.

16

D149826

IMPORTANT DECAL

Caution/Important

1шт.

17

D149828

DECAL

Backhoe; 2 Lever

1шт.

18

D149829

DECAL

Backhoe; 2 Lever

1шт.

19

D149868

BOOT

1шт.

20

87418516

SUPPORT

1шт.

Выбрано товаров: 22
