Запчасти Case 580SN (88.035.29[05]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES

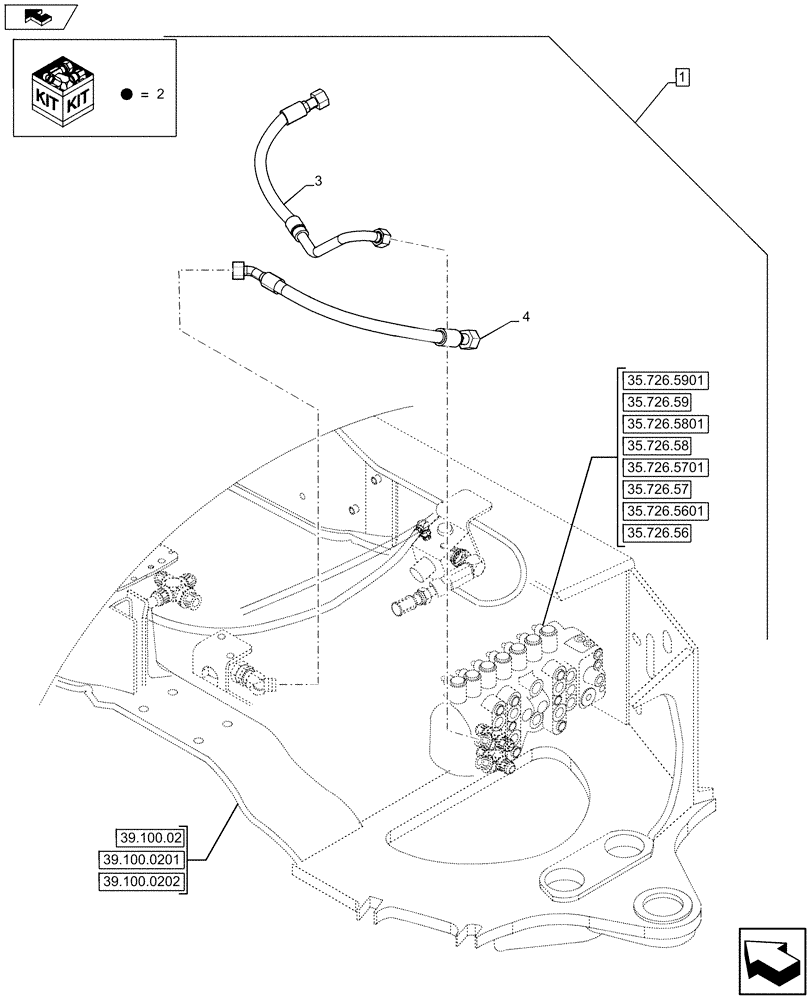

Схема запчастей Case 580SN - (88.035.29[05]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES
3
39.100.0201
35.726.5701
35.726.58
35.726.5601
35.726.59
home
2
35.726.5901
39.100.02
4
35.726.5801
35.726.57
1
39.100.0202
35.726.56

Артикул

Название

Примечание

Количество

1

84396878

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, W/ Mechanical Controls, W/ Standard Dipper, Incl 2 - 4

1шт.

See Ref. 88.035.29 [01] to 88.035.29 [04], 88.035.29 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84276556

SERVICE KIT

Hydraulic Valve Seal Kit

1шт.

3

84292024

HYD TUBE

1шт.

4

84258266

HOSE ASSY.,19mm ID x 713mm L

1шт.

Выбрано товаров: 6
