(88.035.29[04]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER

Запчасти Case 580SN (88.035.29[04]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES

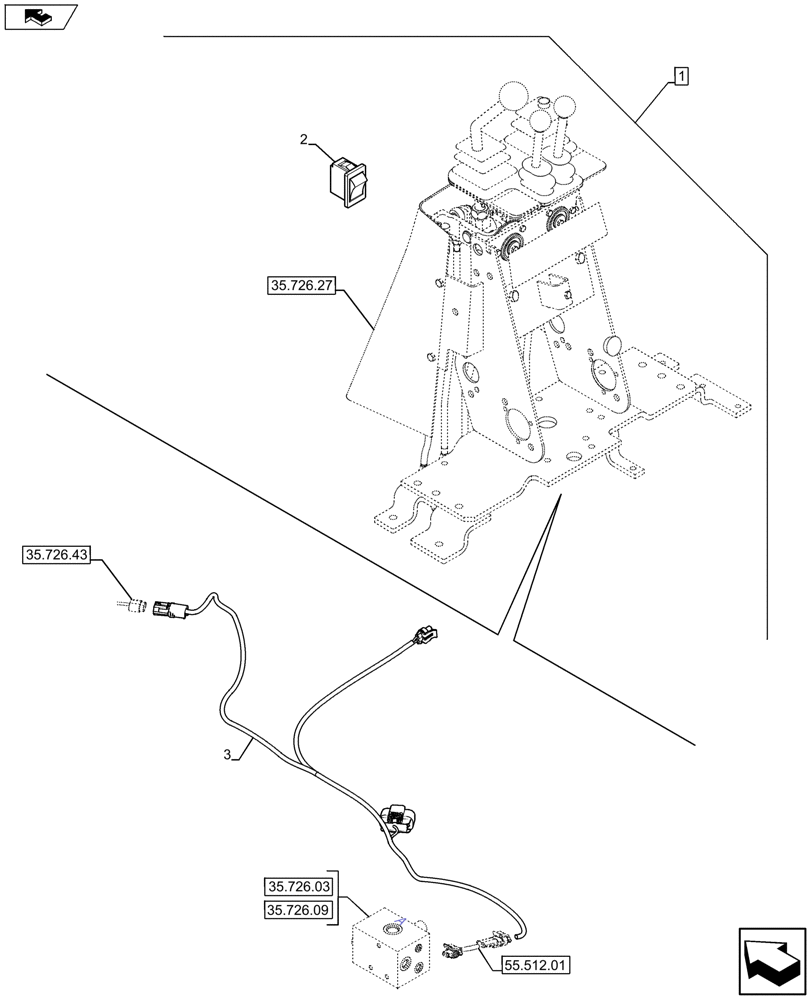

Схема запчастей Case 580SN - (88.035.29[04]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES
35.726.27
1
35.726.09
35.726.43
2
home
35.726.03
a
3
55.512.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84396878

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, W/ Mechanical Controls, W/ Standard Dipper, Incl 2 - 3

1шт.

See Ref. 88.035.29 [01] to 88.035.29 [03], 88.035.29 [05] to 88.035.29 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84241093

SWITCH

1шт.

3

84292391

WIRE HARNESS

1шт.

Выбрано товаров: 5
