Запчасти Case 580SN (88.035.29[03]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES

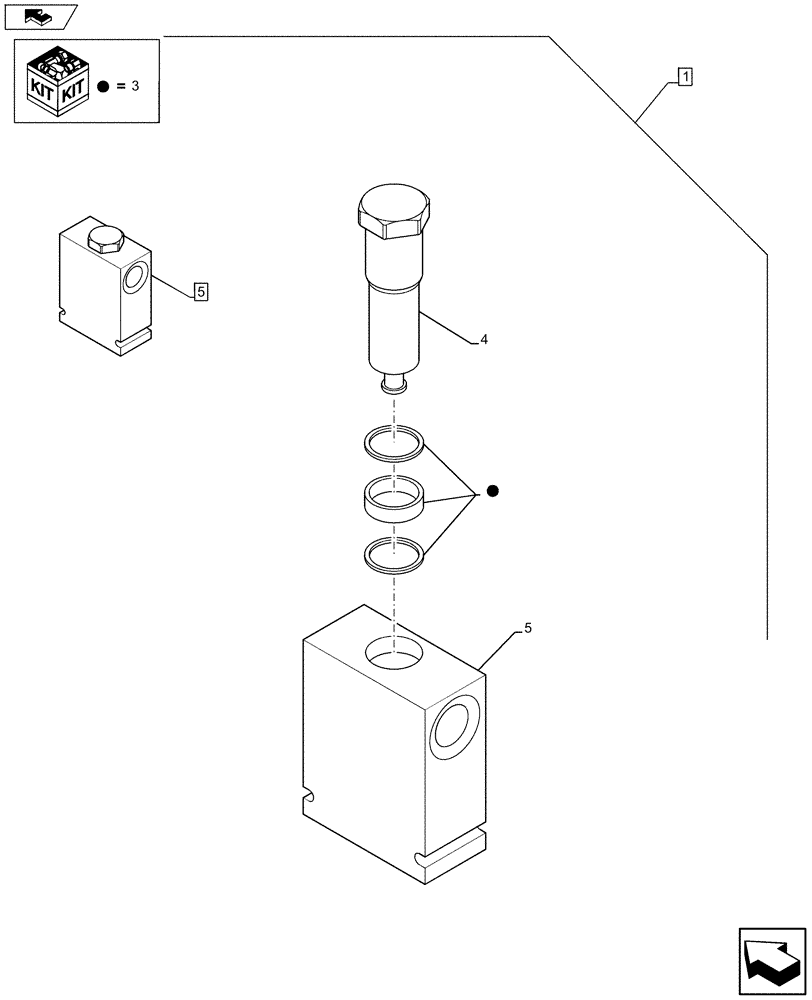

Схема запчастей Case 580SN - (88.035.29[03]) - DIA KIT, COMBO AUX W/MC, STANDARD DIPPER (88) - ACCESSORIES
5
5
4
3
3
home
1

Артикул

Название

Примечание

Количество

1

84396878

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, W/ Mechanical Controls, W/ Standard Dipper, Incl 2 - 5

1шт.

See Ref. 88.035.29 [01] to 88.035.29 [02], 88.035.29 [04] to 88.035.29 [06]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

3

84422097

SERVICE KIT

2шт.

4

84422094

CHECK VALVE

1шт.

5

NSS

NOT SOLD SEPARAT

Body, Incl in 6

1шт.

2

84422084

CHECK VALVE

Assy, Incl 3 - 5

1шт.

Выбрано товаров: 7
