Запчасти Case 580SN (88.035.25[06]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

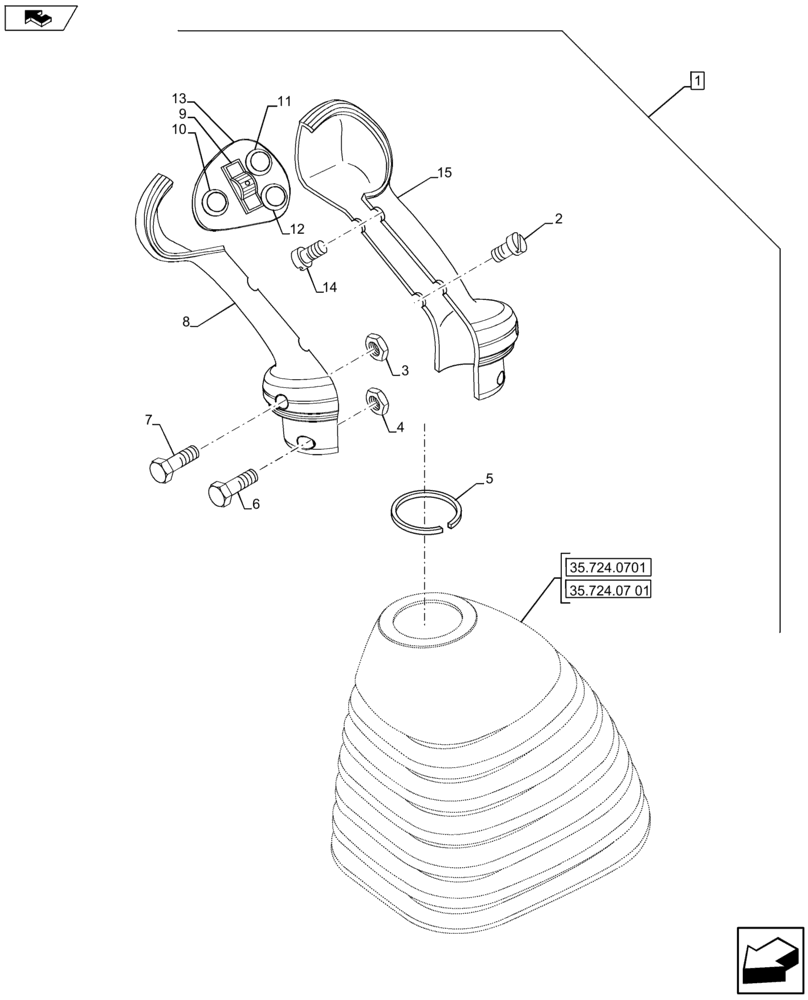

Схема запчастей Case 580SN - (88.035.25[06]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
35.724.07 01
1
4
3
14
15
10
6
7
2
11
12
9
5
13
home
35.724.0701
8

Артикул

Название

Примечание

Количество

1

84484678

KIT

Mech Controls, 3 Spools, Powershift Transmission, Incl 2 - 15

1шт.

See Ref. 88.035.25 [01] to 88.035.25 [05], 88.035.25 [07] to 88.035.25 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87689338

SCREW,#4 - 24 x 3/8"

1шт.

3

87638350

NUT

2шт.

4

825-1404

NUT,M4, Cl 8

4шт.

5

87689189

CABLE TIE,110mm L

1шт.

6

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

7

87019103

SET SCREW,M6 x 10mm

2шт.

8

87623339

HANDLE GRIP

1шт.

9

87387703

PUSH BUTTON

1шт.

10

87658706

PUSH BUTTON

De-Clutch

1шт.

11

87658707

PUSH BUTTON SWITCH

Kick Down

1шт.

12

87658705

PUSH BUTTON

Differential Lock

1шт.

13

87623342

BEZEL

1шт.

14

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

15

87623338

HANDLE GRIP

1шт.

Выбрано товаров: 17
