Запчасти Case 580SN (88.035.25[02]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES

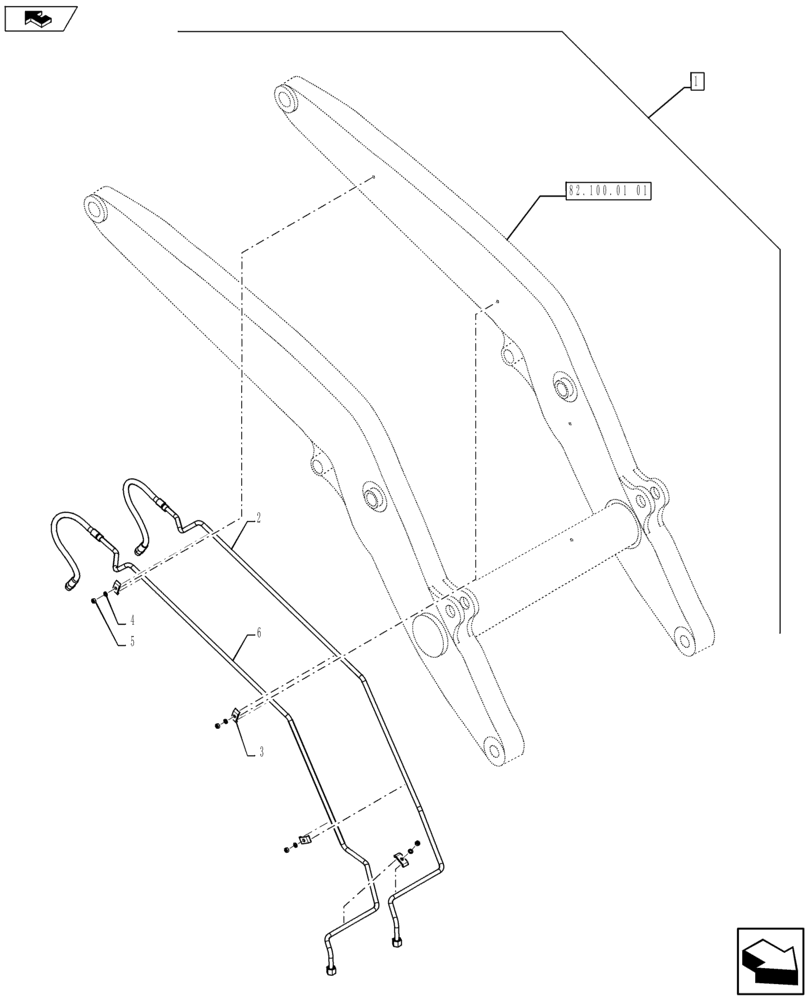

Схема запчастей Case 580SN - (88.035.25[02]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, POWERSHIFT TRANSMISSION (88) - ACCESSORIES
5
82.100.01 01
4
2
3
1
home
6

Артикул

Название

Примечание

Количество

1

84484678

KIT

Pilot Controls, 3 Spools, Powershift Transmission, Incl 2 - 6

1шт.

See Ref. 88.035.25 [01], 88.035.25 [03] to 88.035.25 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

84282567

HYD TUBE

4-in-1 Bucket Aux. Port A

1шт.

3

D138055

CLAMP

9шт.

4

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

5

86500689

NUT,M10 x 1.5, Cl 10

4шт.

6

84282570

HYD TUBE

4-in-1 Bucket Aux. Port B

1шт.

Выбрано товаров: 8
