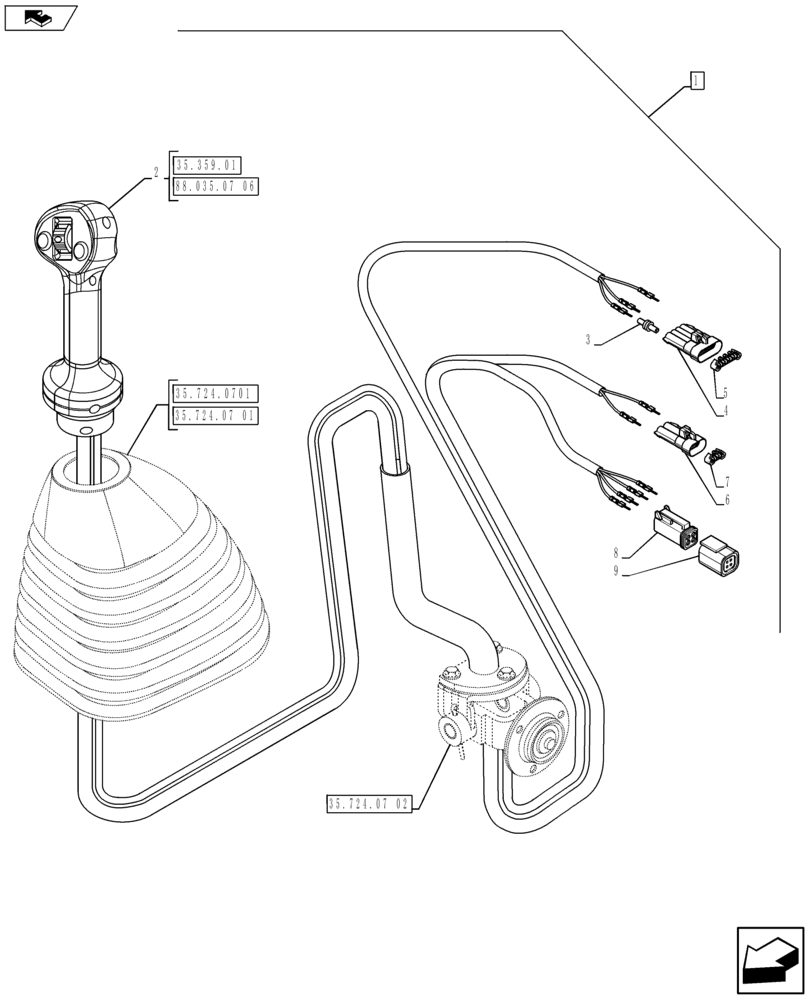

Запчасти Case 580SN (88.035.23[05]) - DIA KIT, PILOT CONTROLS, 3 SPOOLS, STANDARD TRANSMISSION (88) - ACCESSORIES

1

84484674

KIT

Pilot Controls, 3 Spools, Standard Transmission, Incl 2 - 9

1шт.

See Ref. 88.035.23 [01] to 88.035.23 [04], 88.035.23 [06] to 88.035.23 [08]

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

87638047

JOYSTICK

Assy, Loader Control Lever, Two Button, DeClutch and Differential Lock, Prop Roller with Detent; 3 Spool

1шт.

3

298176A1

PLUG

1шт.

4

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

5

258616A1

LOCK

1шт.

6

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

258613A1

LOCK

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

225327C1

WEDGE,Lock, Black

1шт.
