Запчасти Case 580SN (88.035.20[02]) - DIA KIT, DUAL-AUX, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES

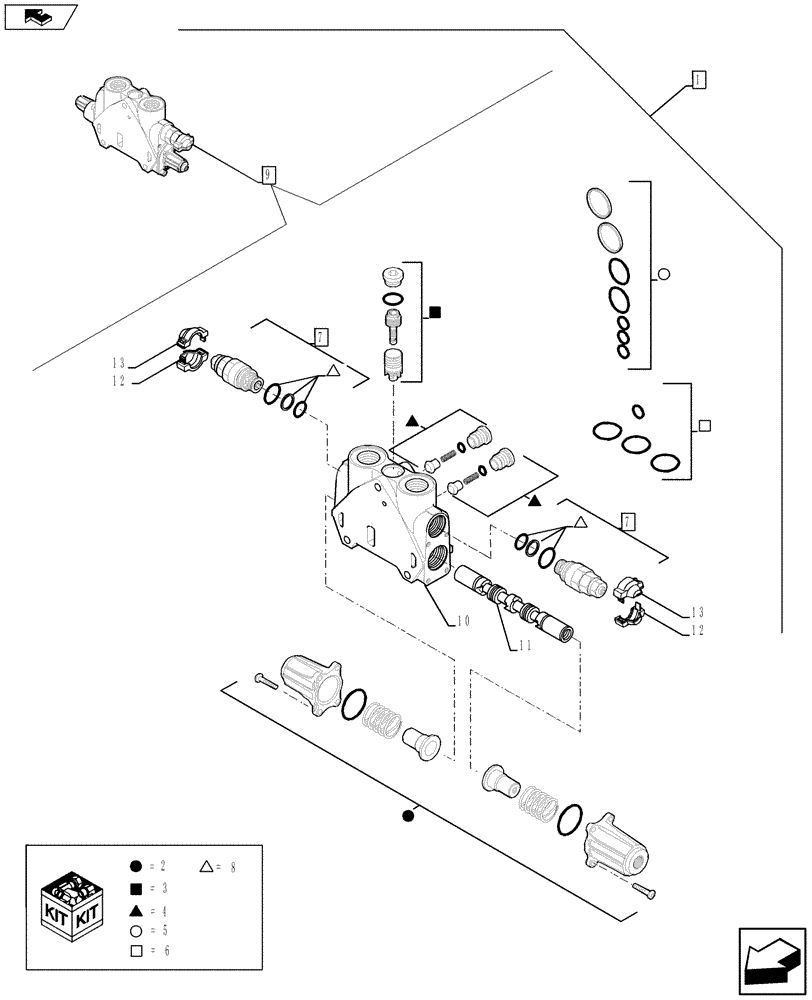

Схема запчастей Case 580SN - (88.035.20[02]) - DIA KIT, DUAL-AUX, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES
12
13
4
9
12
7
8
13
11
4
10
2
6
home
5
4
3
6
5
3
8
2
7
8
1

Артикул

Название

Примечание

Количество

1

84492791

SERVICE KIT

Dual-Aux, Pilot Controls, Extendable Dipper, Incl 2 - 9, Serial Range: -`0

1шт.

See Ref. 88.035.20 [01], 88.035.20 [03]

1шт.

2

85826344

KIT,Operation

1шт.

3

85819378

KIT

1шт.

4

85811938

KIT,Check Valve

2шт.

5

85824281

SEAL KIT,Control Valve Section, Complete

1шт.

6

85819148

SEAL KIT,Between Control Valve Sections

1шт.

7

85812115

VALVE PRESSURE RELIE

Assy, Incl 8

2шт.

8

85811933

SEAL KIT,Secondary Valve

1шт.

9

84278691

HYD VALVE SECTION

Assy, Incl 2 - 8

1шт.

10

NSS

NOT SOLD SEPARAT

Valve, Incl in 9

1шт.

11

NSS

NOT SOLD SEPARAT

Poppet, Incl in 9

1шт.

12

NSS

NOT SOLD SEPARAT

Half Flange, Incl in 9

1шт.

13

NSS

NOT SOLD SEPARAT

Half Flange, Incl in 9

1шт.

Выбрано товаров: 14
