Запчасти Case 580SN (88.035.15[03]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES

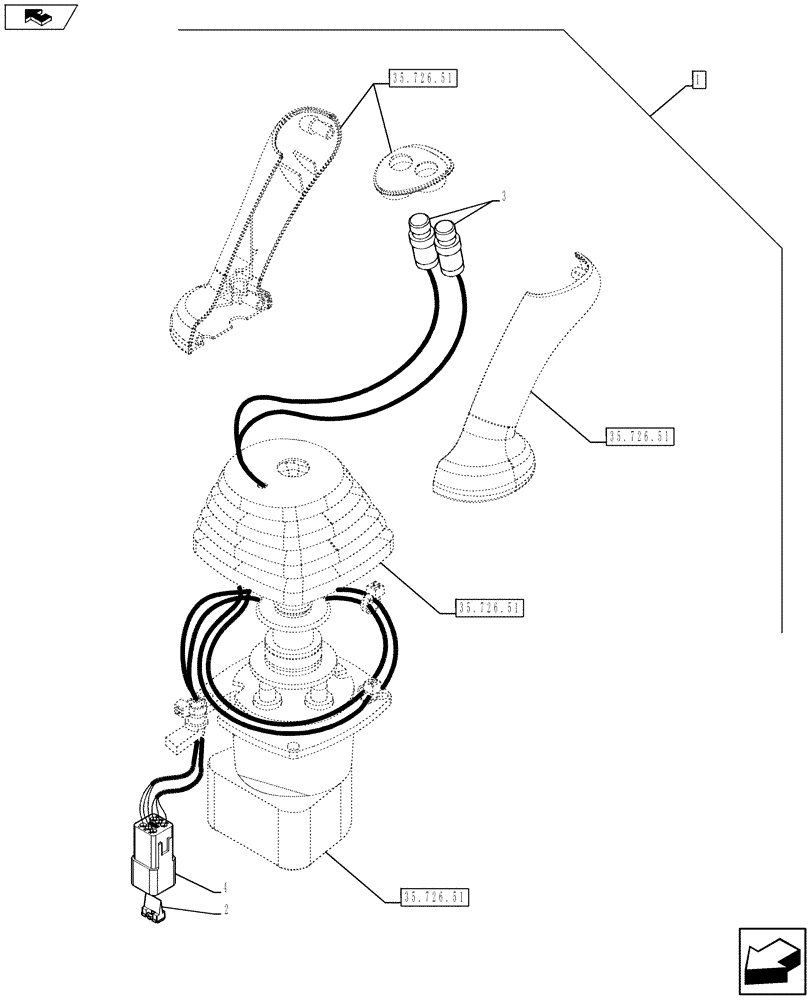

Схема запчастей Case 580SN - (88.035.15[03]) - DIA KIT, BI-AUX PR VALVE SECTION, PILOT CONTROLS, EXTENDABLE DIPPER (88) - ACCESSORIES
35.726.51
1
4
35.726.51
home
35.726.51
35.726.51
3
2

Артикул

Название

Примечание

Количество

1

84412227

SERVICE KIT

Bi-Aux Pr Valve Section, Pilot Controls, Ext. Dipper, Incl 2 - 4, Serial Range: -`0

1шт.

See Ref. 88.035.15 [01] to 88.035.15 [02]

1шт.

2

225353C1

WEDGE,Lock, Black

Type W6P, Connector

1шт.

3

84134639

SWITCH

Push Button; Retract and Extendahoe

2шт.

4

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

Выбрано товаров: 5
